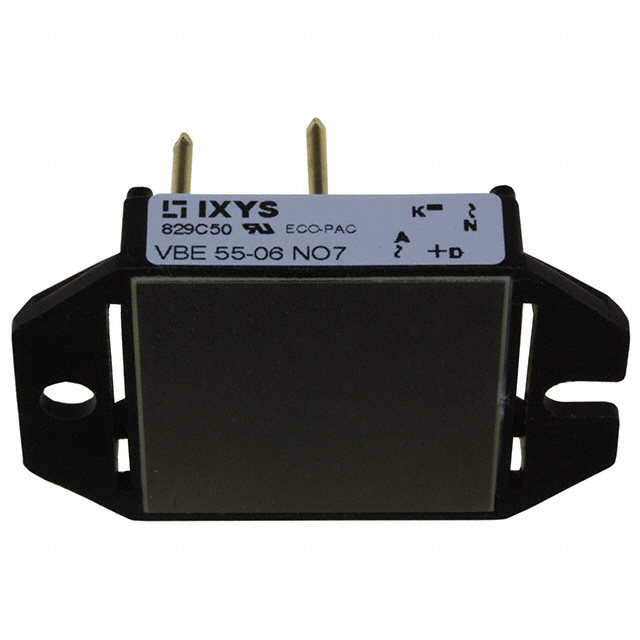

VBE55-06NO7
BRIDGE RECT 1P 600V 68A ECO-PAC1Manufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More
The IXYS VBE55-06NO7 is a high-performance single-phase bridge rectifier designed for demanding applications. Featuring a robust 600V peak reverse voltage and a substantial 68A average rectified current (Io), this component ensures reliable power conversion in challenging environments. Its standard technology and ECO-PAC1 package facilitate efficient chassis mounting for optimal thermal management. The VBE55-06NO7 exhibits a low forward voltage drop of 1.57V at 30A and a minimal reverse leakage of 250 µA at its maximum reverse voltage. Operating across a wide temperature range of -40°C to 150°C (TJ), this rectifier is well-suited for industrial power supplies, motor control systems, and welding equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 51 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | ECO-PAC1 |
| Mounting Type | Chassis Mount |
| Diode Type | Single Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | ECO-PAC1 |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 68 A |
| Voltage - Forward (Vf) (Max) @ If | 1.57 V @ 30 A |
| Current - Reverse Leakage @ Vr | 250 µA @ 600 V |
Request a Quote
