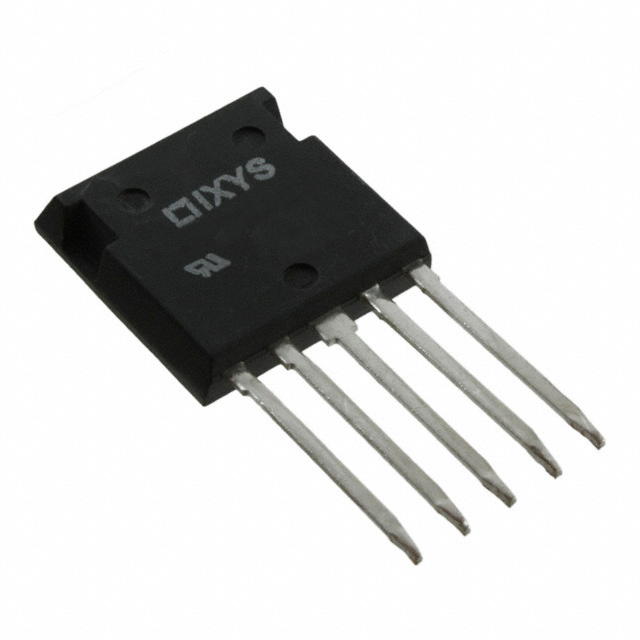

FBE22-06N1
BRIDGE RECT 1P 600V 20A I4-PACManufacturer: IXYS
Categories: Bridge Rectifiers
Quality Control: Learn More
IXYS HiPerFRED²™ FBE22-06N1 is a single-phase bridge rectifier designed for high-efficiency power conversion applications. This through-hole component features a reverse voltage rating of 600V and an average rectified forward current of 20A. The FBE22-06N1 utilizes standard rectifier technology with a maximum forward voltage drop of 2.13V at 11A and a low reverse leakage current of 60µA at 600V. Packaged in the ISOPLUS i4-PAC™ housing, it offers robust thermal performance suitable for demanding operating temperatures from -55°C to 175°C (TJ). This device is commonly employed in industrial power supplies, motor control systems, and renewable energy applications requiring reliable rectification.
Additional Information
Series: HiPerFRED²™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | i4-Pac™-5 |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Technology | Standard |
| Supplier Device Package | ISOPLUS i4-PAC™ |
| Voltage - Peak Reverse (Max) | 600 V |
| Current - Average Rectified (Io) | 20 A |
| Voltage - Forward (Vf) (Max) @ If | 2.13 V @ 11 A |
| Current - Reverse Leakage @ Vr | 60 µA @ 600 V |
