M83513/25-D01NP
MICRO-D RECEPTACLE 25POS PCB, ELManufacturer: ITT Cannon, LLC
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
25 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Additional Information
Series: Military, MIL-C-83513, M83513RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 3A |
| Mounting Type | Through Hole |
| Number of Positions | 25 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Type, Micro-D |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
| Shell Material, Finish | Aluminum Alloy, Nickel Plated, Electroless |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
| Backset Spacing | - |
Request a Quote
Clients Also Buy
M83513/13-B01NP
M83513/13-B01NP

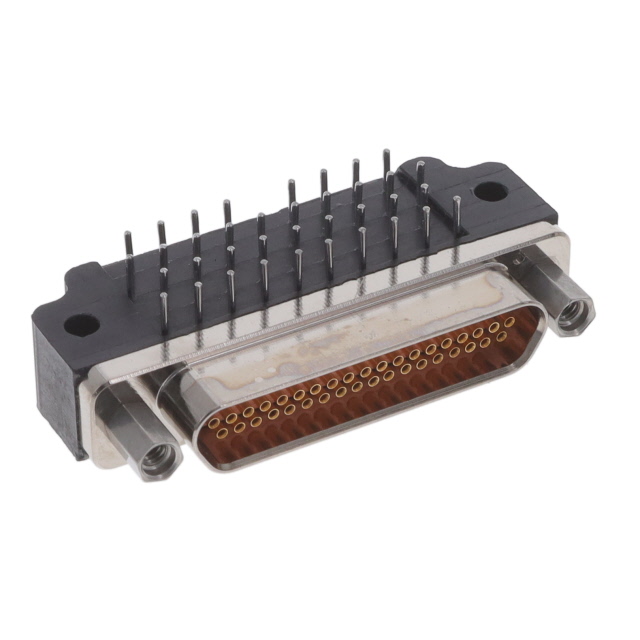

M83513/13-F01NP
