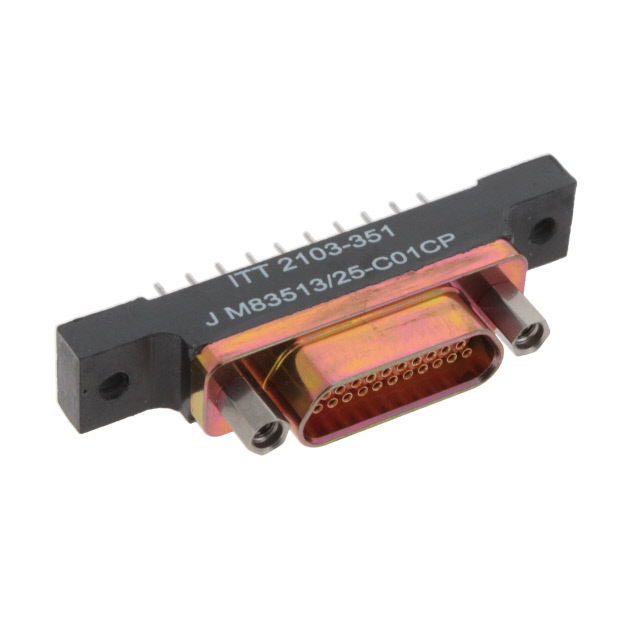

M83513/25-C01CP
M83513/25-C01CPManufacturer: ITT Cannon, LLC
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
21 Position D-Type, Micro-D Receptacle, Female Sockets Connector
Additional Information
Series: 83513-Style Micro D Metal Shell (MDM)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 29 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 3A |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 21 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Termination | Solder Cup |
| Ingress Protection | - |
| Connector Style | D-Type, Micro-D |
| Contact Finish Thickness | - |
| Material Flammability Rating | - |
| Shell Material, Finish | Aluminum, Yellow Chromate Plated Cadmium |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row |
| Backset Spacing | - |
Request a Quote
