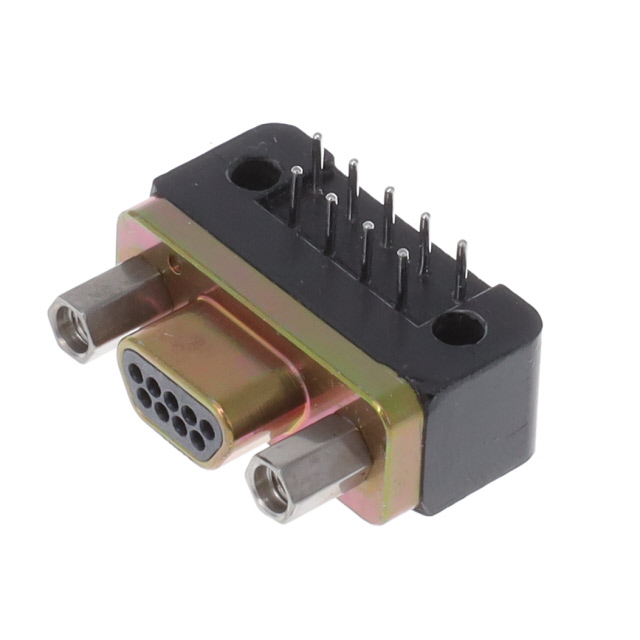

M83513/10-A01CP
CONN MICRO-D PLUG 9POS R/A SLDRManufacturer: ITT Cannon, LLC
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
9 Position D-Type, Micro-D Plug, Male Pins Connector
Additional Information
Series: 83513-Style Micro D Metal Shell (MDM)RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 3A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Contact Type | Signal |
| Flange Feature | Mating Side, Female Screwlock (2-56) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Type, Micro-D |
| Contact Finish Thickness | 50.0µin (1.27µm) |
| Shell Material, Finish | Aluminum, Yellow Chromate Plated Cadmium |
| Shell Size, Connector Layout | 0.050 Pitch x 0.043 Row to Row |
Request a Quote
