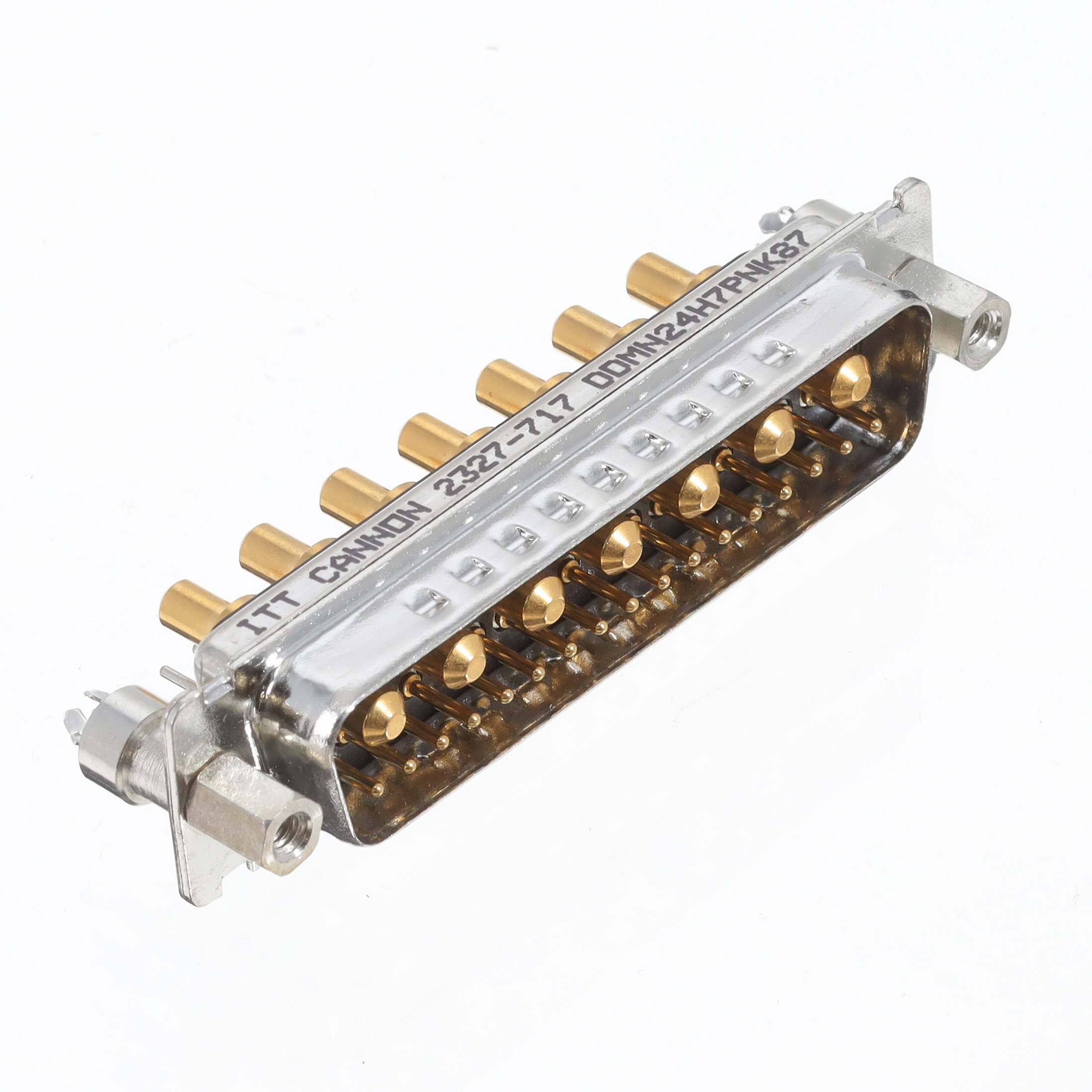

DDMN-24H7P-N-K87
D SUBManufacturer: ITT Cannon, LLC
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
24 (17 + 7 Power) Position D-Sub, Combo Plug, Male Pins Connector
Additional Information
Series: D-MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 30 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Grounding Indents, Shielded |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 7.5A, 40A |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 24 (17 + 7 Power) |
| Number of Rows | 2 |
| Contact Type | Signal and Power |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub, Combo |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout | 5 (DD, D) - 24W7 |
| Backset Spacing | - |
| Primary Material | Metal |
