DCMC-8H8S-J-A197
D SUBManufacturer: ITT Cannon, LLC
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

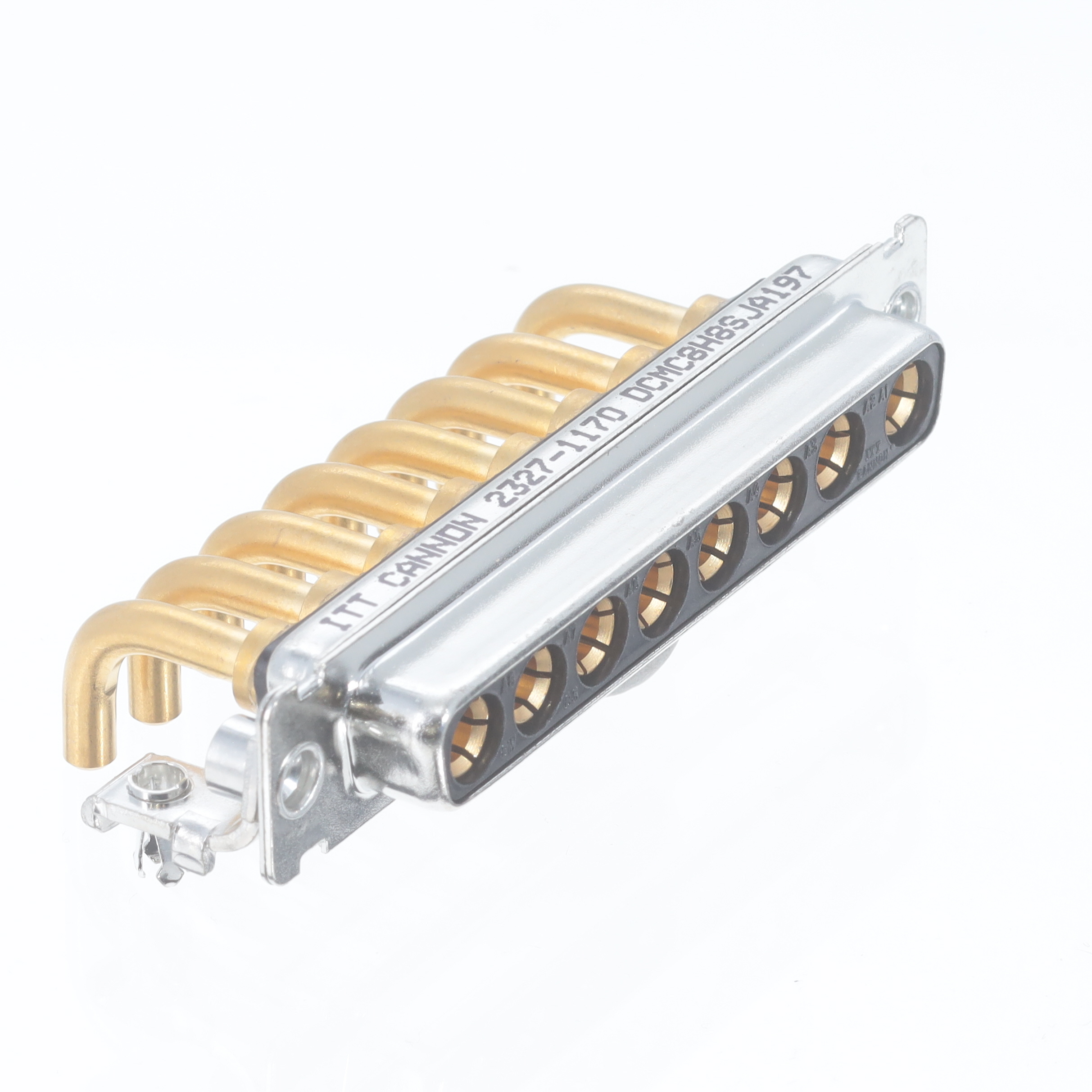

8 (Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
Additional Information
Series: D-MRoHS Status: ROHS3 CompliantManufacturer Lead Time: 23 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Mounting Brackets, Shielded |
| Packaging | Bulk |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Current Rating (Amps) | 40A |
| Mounting Type | Panel Mount, Through Hole, Right Angle |
| Number of Positions | 8 (Power) |
| Number of Rows | 1 |
| Contact Type | Power |
| Flange Feature | Board Side (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub, Combo |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout | 4 (DC, C) - 8W8 |
| Backset Spacing | - |
| Primary Material | Metal |
