DCM-13W6P-K87
COMBO-DManufacturer: ITT Cannon, LLC
Categories: D-Sub Connector Assemblies
Quality Control: Learn More

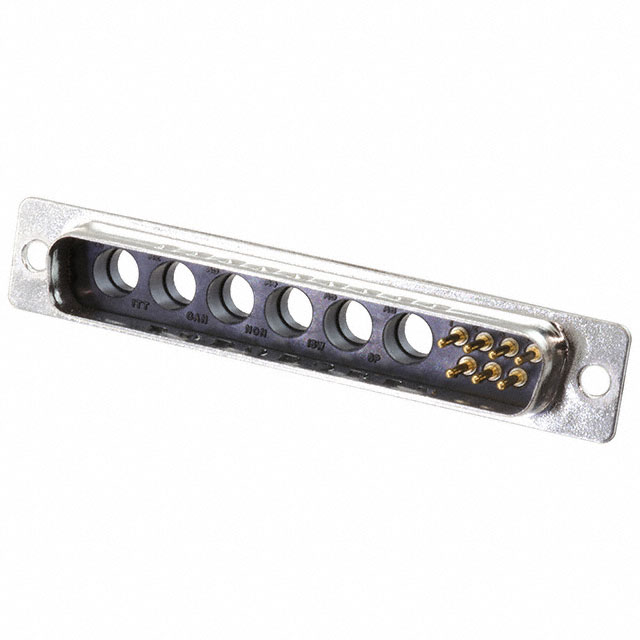

13 (7 + 6 Coax or Power) Position D-Sub, Combo Plug, Male Pins Connector
Additional Information
Series: DCMRoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | Grounding Indents, Shielded |
| Packaging | Bag |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 7.5A |
| Mounting Type | Panel Mount |
| Number of Positions | 13 (7 + 6 Coax or Power) |
| Number of Rows | 2 |
| Contact Type | Signal and Coax or Power (Not Included) |
| Flange Feature | Housing/Shell (Unthreaded) |
| Termination | Solder Cup |
| Ingress Protection | - |
| Connector Style | D-Sub, Combo |
| Contact Finish Thickness | FLASH |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Tin-Nickel Plated |
| Shell Size, Connector Layout | 4 (DC, C) - 13W6 |
| Backset Spacing | - |
Request a Quote
