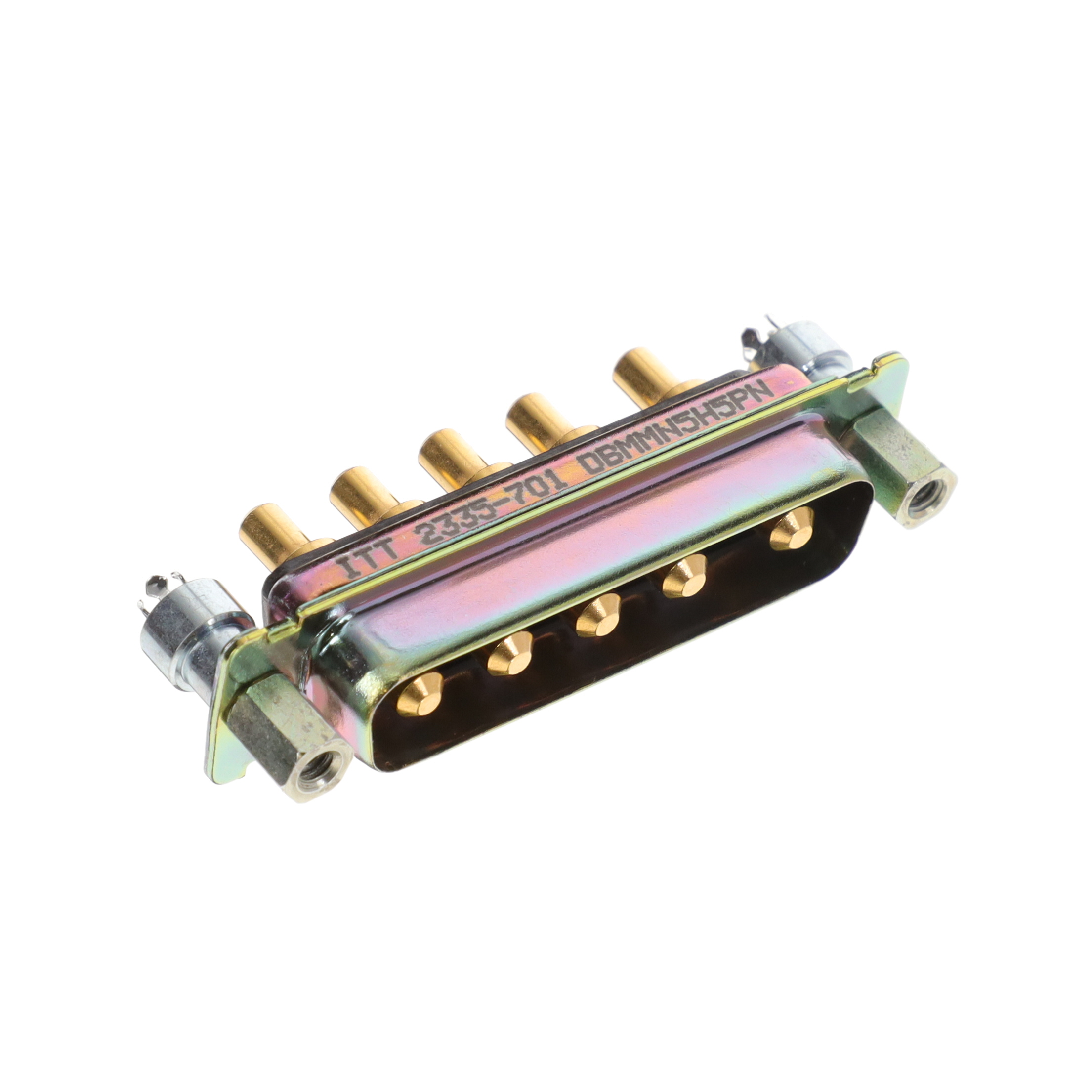

DBMMN-5H5P-N
D SUBManufacturer: ITT Cannon, LLC
Categories: D-Sub Connector Assemblies
Quality Control: Learn More
5 (Power) Position D-Sub, Combo Plug, Male Pins Connector
Additional Information
Series: D-MRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 19 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Board Lock, Shielded |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Current Rating (Amps) | 40A |
| Mounting Type | Panel Mount, Through Hole |
| Number of Positions | 5 (Power) |
| Number of Rows | 1 |
| Contact Type | Power |
| Flange Feature | Mating Side, Female Screwlock (4-40) |
| Termination | Solder |
| Ingress Protection | - |
| Connector Style | D-Sub, Combo |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
| Shell Material, Finish | Steel, Yellow Chromate Plated Zinc |
| Shell Size, Connector Layout | 3 (DB, B) - 5W5 |
| Backset Spacing | - |
| Primary Material | Metal |
