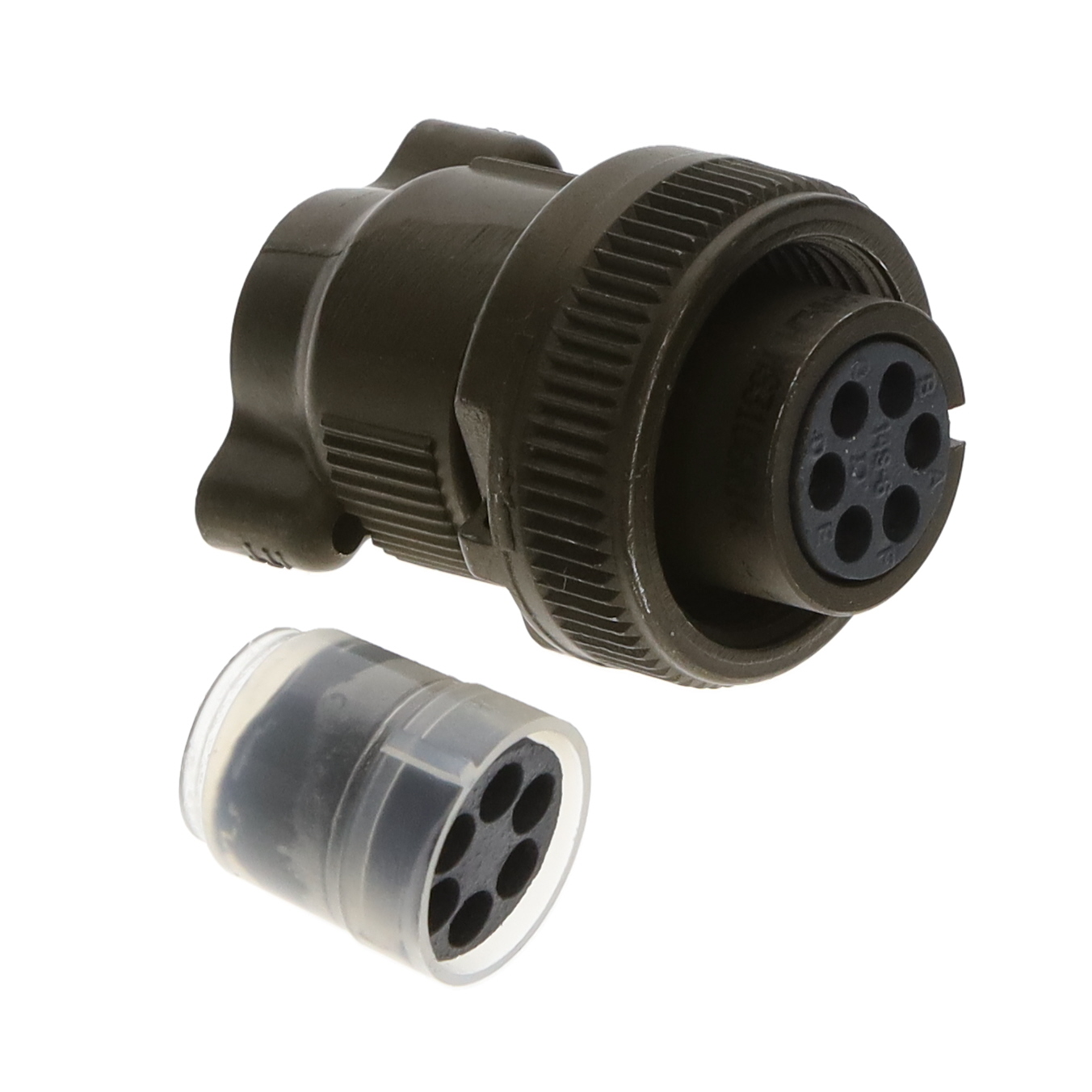

MS3106R14S-6S
MIL-DTL 5015 SERIES IManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More
6 Position Circular Connector Plug, Female Sockets Solder Cup
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | Cable Clamp, Coupling Nut |
| Packaging | Bag |
| Connector Type | Plug, Female Sockets |
| Color | Olive Drab |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Unshielded |
| Number of Positions | 6 |
| Orientation | N (Normal) |
| Shell Size - Insert | 14S-6 |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Threaded |
| Termination | Solder Cup |
| Ingress Protection | Environment Resistant |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Silver |
| Grade | Military |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
