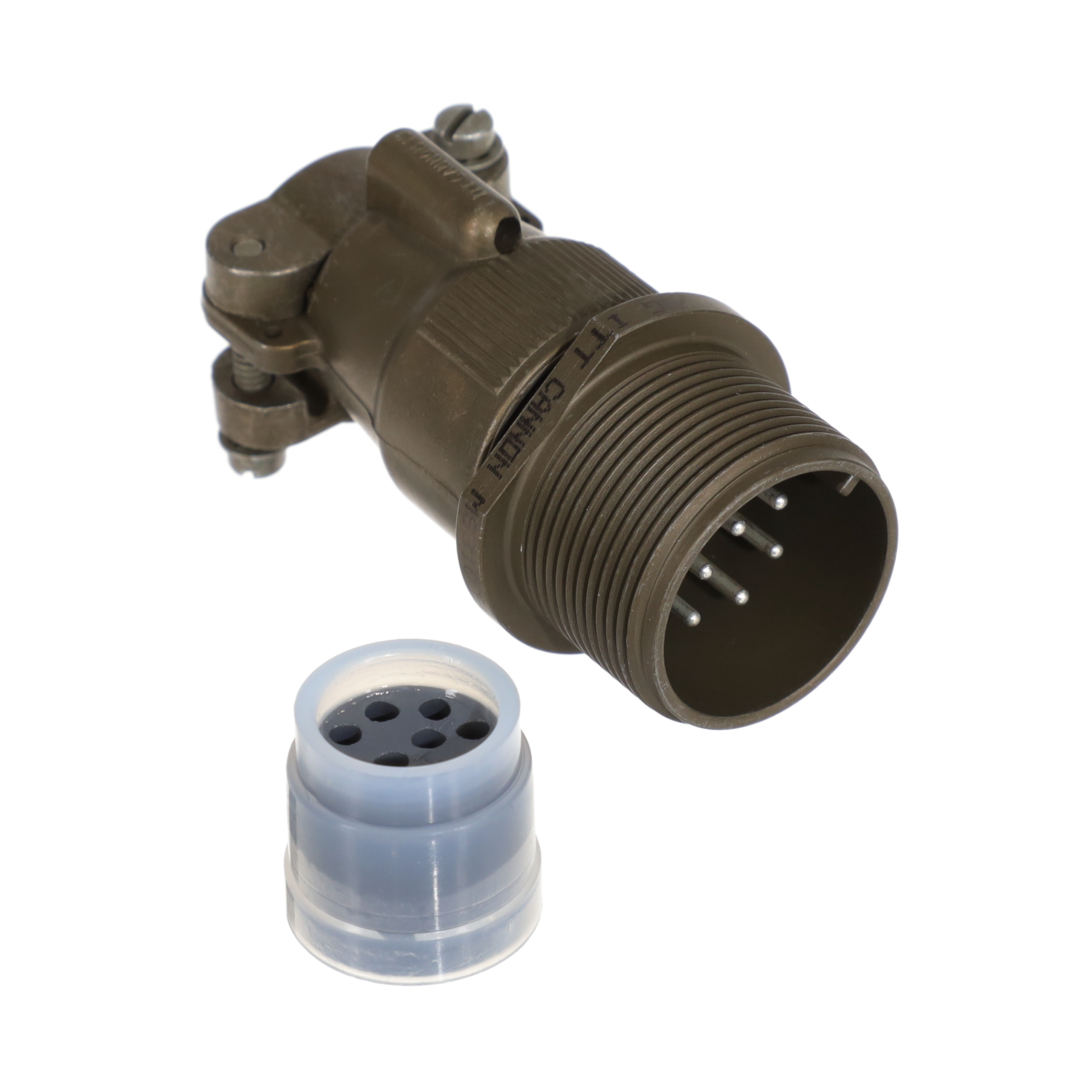

MS3101E18-1P
MIL-DTL 5015 SERIES IManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More
10 Position Circular Connector Receptacle, Male Pins Solder Cup
Additional Information
Series: MSRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 26 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | Cable Clamp |
| Packaging | Bag |
| Connector Type | Receptacle, Male Pins |
| Color | Olive Drab |
| Voltage Rating | 200VAC, 250VDC |
| Current Rating (Amps) | 22A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | - |
| Number of Positions | 10 |
| Orientation | N (Normal) |
| Shell Size - Insert | 18-1 |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Threaded |
| Termination | Solder Cup |
| Ingress Protection | Environment Resistant |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Silver |
| Grade | Military |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
Request a Quote
