MS3100E28-11S
MIL-DTL 5015 SERIES IManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More

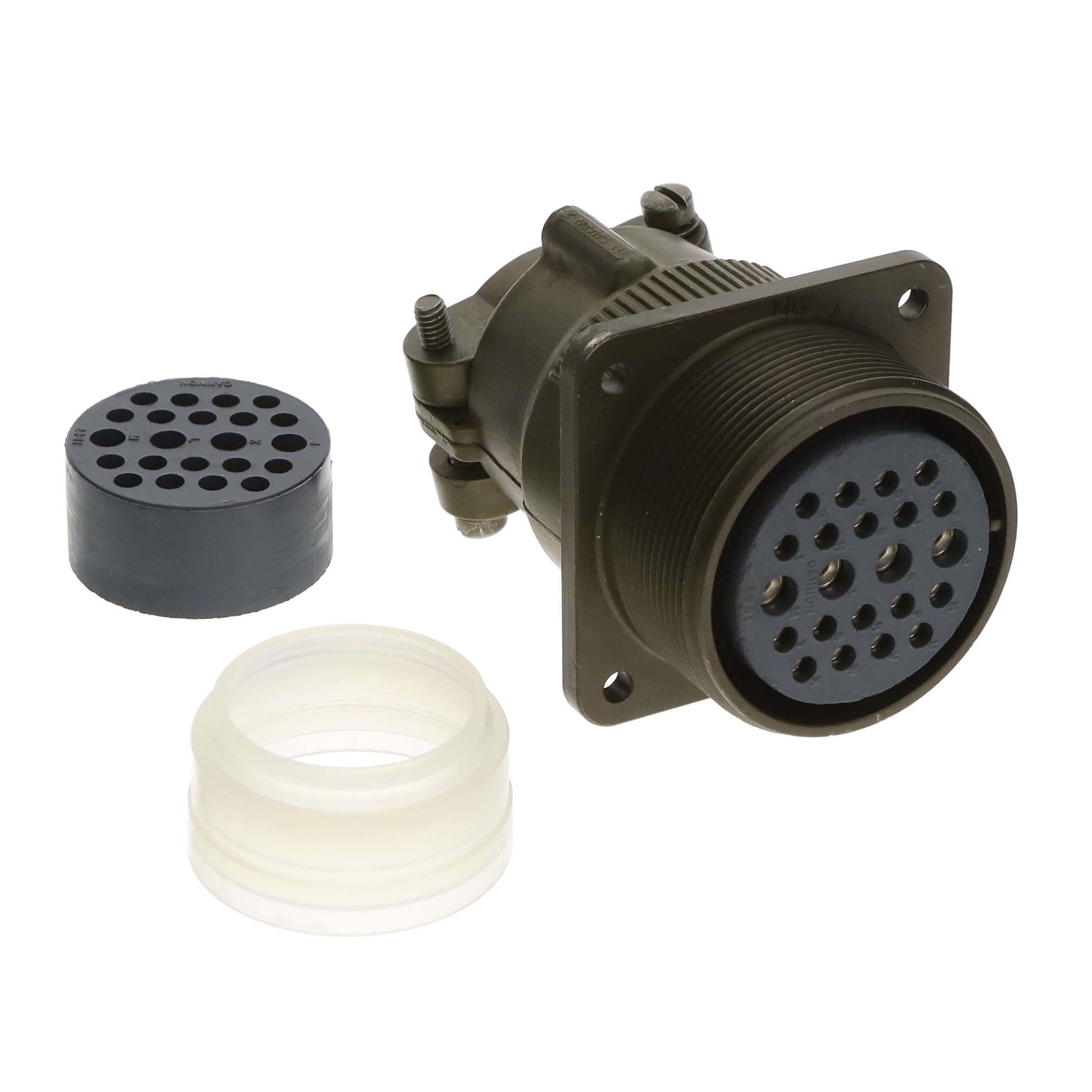

22 Position Circular Connector Receptacle, Female Sockets Solder Cup
Additional Information
Series: MSRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 28 week(s)Product Status: ActivePackaging: BagDownload Free CAD Model:
Technical Details:
| Features | Cable Clamp |
| Packaging | Bag |
| Connector Type | Receptacle, Female Sockets |
| Color | Olive Drab |
| Voltage Rating | - |
| Current Rating (Amps) | - |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 22 |
| Orientation | N (Normal) |
| Shell Size - Insert | 28-11 |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Threaded |
| Termination | Solder Cup |
| Ingress Protection | Environment Resistant |
| Cable Opening | 0.922"" (23.42mm) |
| Material Flammability Rating | - |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Silver |
| Grade | Military |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Chromate over Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
