KPT02E20-16P
26482 - STYLE SERIES I & MIL BATManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More

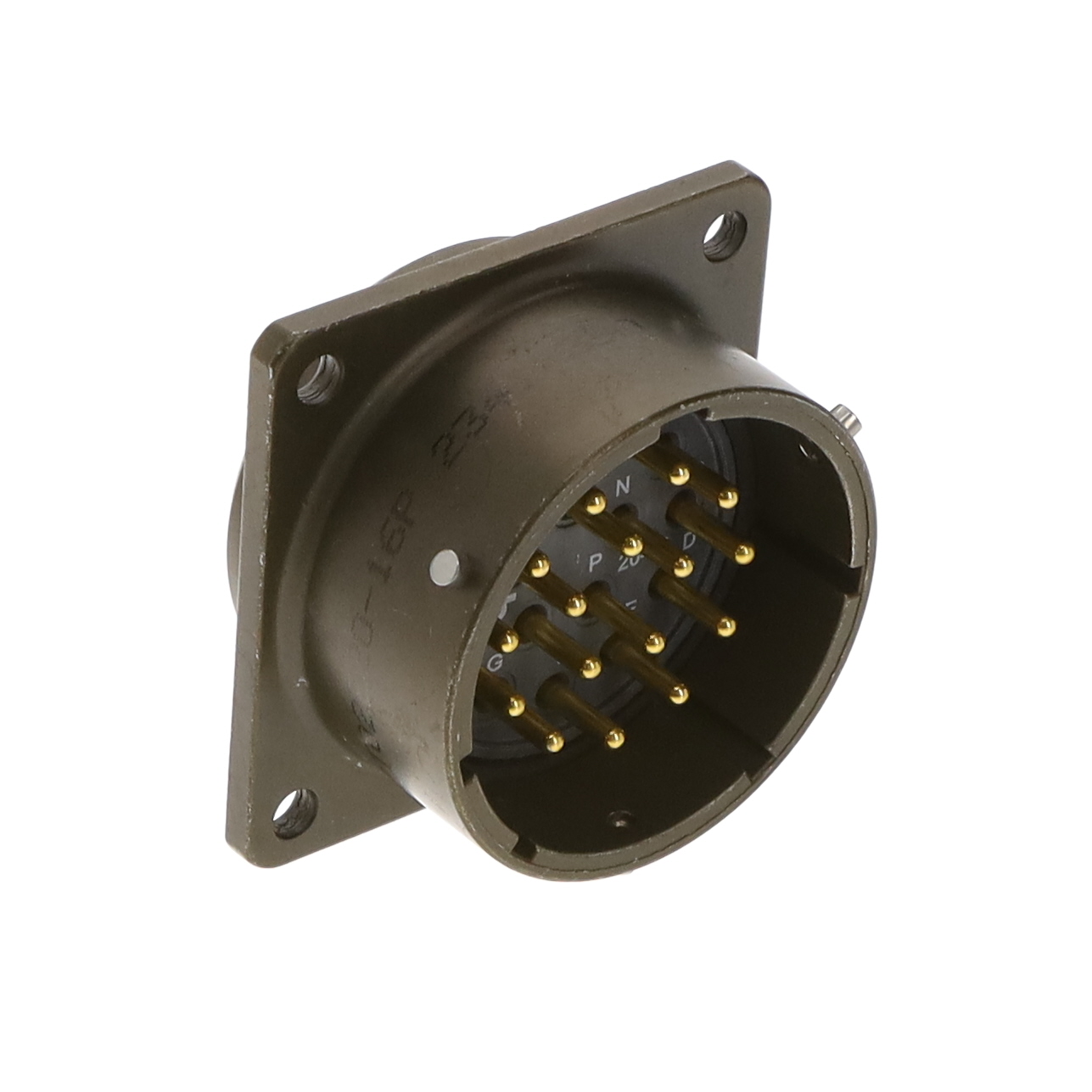

16 Position Circular Connector Receptacle, Male Pins Solder Cup
Additional Information
Series: KPTRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 33 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle, Male Pins |
| Color | Olive Drab |
| Voltage Rating | 1000VAC, 1400VDC |
| Current Rating (Amps) | 13A |
| Mounting Type | Panel Mount |
| Shielding | - |
| Number of Positions | 16 |
| Orientation | N (Normal) |
| Shell Size - Insert | 20-16 |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Bayonet Lock |
| Termination | Solder Cup |
| Ingress Protection | Environment Resistant |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Metal |
