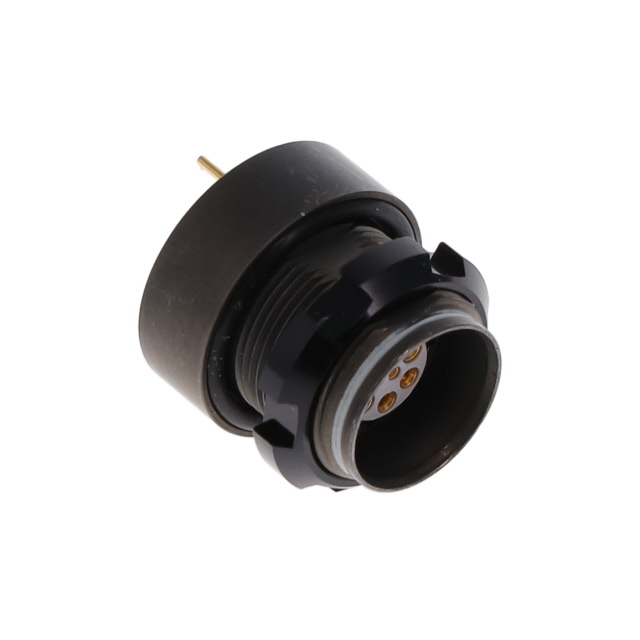

HDX-WGKM0-09UMAL
PUSH-PULL PCB RECEPTACLEManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More
9 (6 + 3 Power) Position Circular Connector Receptacle, Female Sockets Solder
Additional Information
Series: HDXRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Receptacle, Female Sockets |
| Color | Silver |
| Voltage Rating | 250V |
| Current Rating (Amps) | 1A, 5A |
| Mounting Type | Panel Mount, Through Hole |
| Shielding | Unshielded |
| Number of Positions | 9 (6 + 3 Power) |
| Orientation | A |
| Shell Size - Insert | 0-09 |
| Operating Temperature | -51°C ~ 125°C |
| Fastening Type | Push-Pull |
| Termination | Solder |
| Ingress Protection | IPX8/IPX9K - Water Resistant, Waterproof |
| Cable Opening | - |
| Material Flammability Rating | - |
| Mounting Feature | Bulkhead - Front Side Nut |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Shell Material | Brass |
| Shell Finish | Ruthenium over Electroless Nickel |
| Primary Material | Metal |
