CA3106E20-22PXB-15-A232
CA BAYONETManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More

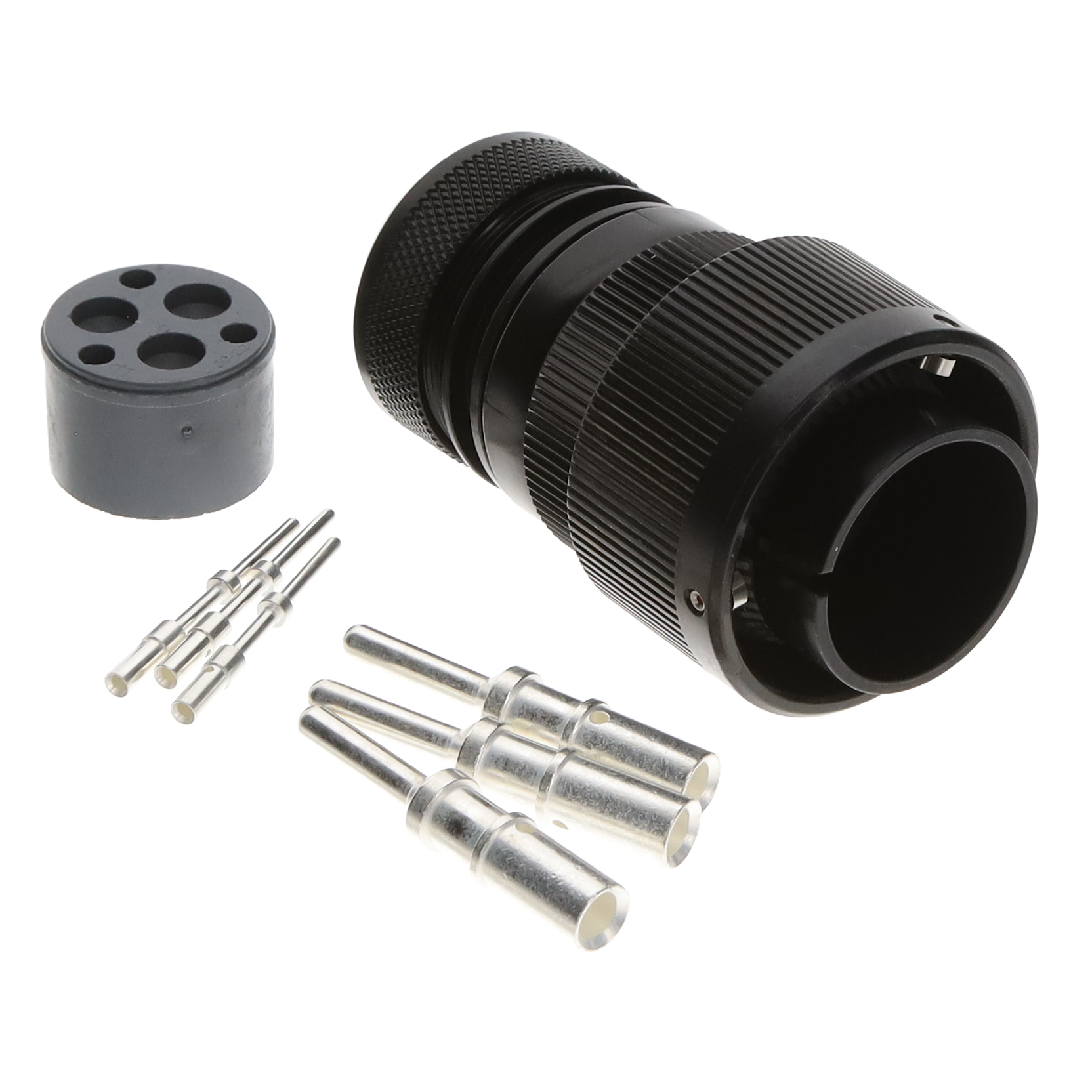

6 Position Circular Connector Plug, Male Pins Crimp
Additional Information
Series: CA-BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bag |
| Connector Type | Plug, Male Pins |
| Color | Olive Drab |
| Voltage Rating | 50V |
| Current Rating (Amps) | 22A, 74A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 6 |
| Orientation | X |
| Shell Size - Insert | 20-22 |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Reverse Bayonet Lock |
| Termination | Crimp |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Silver |
| Grade | - |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
Request a Quote
