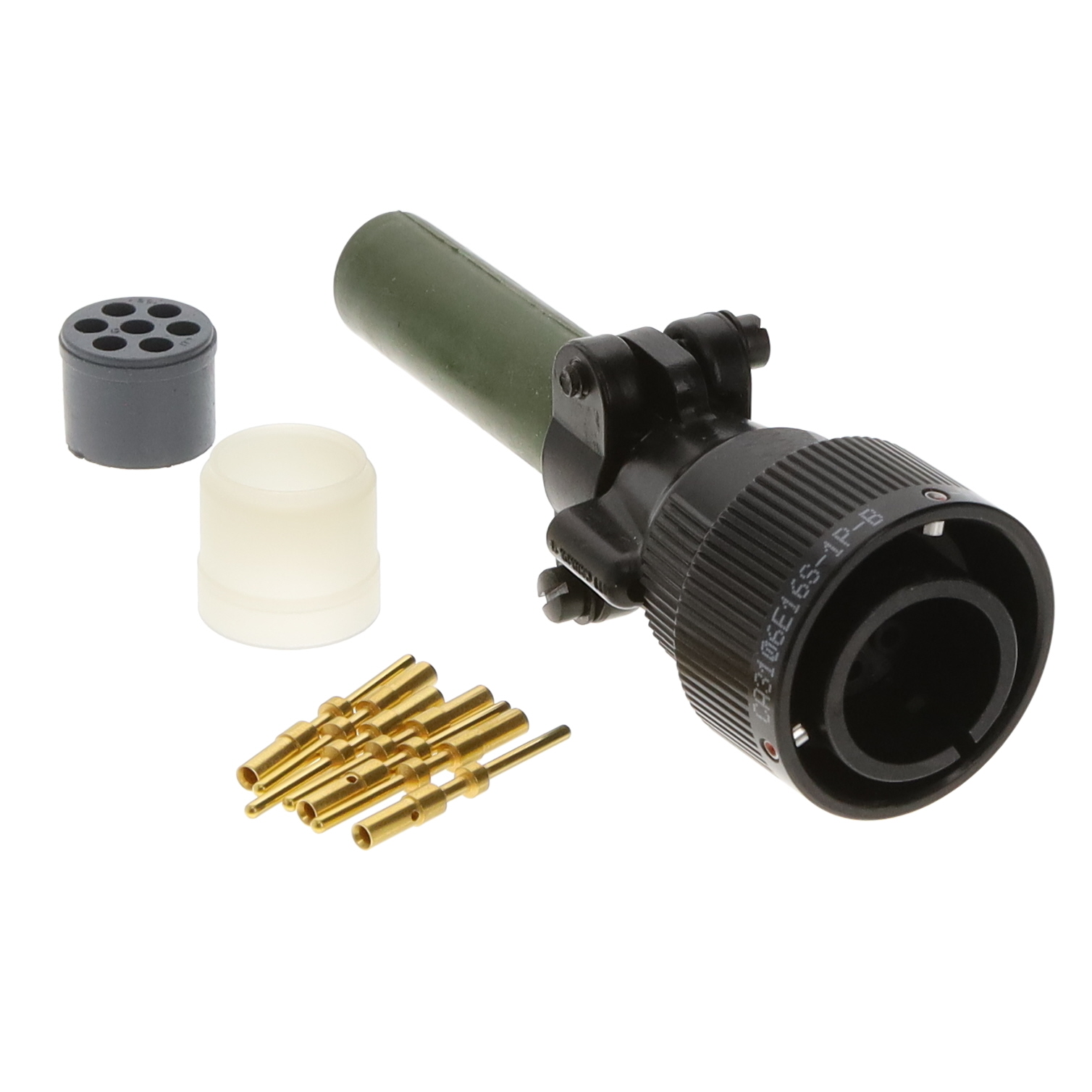

CA3106E16S-1P-B-F80-A176-A232
CONN PLUG W/PINS 7POSManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More
7 Position Circular Connector Plug, Male Pins Crimp
Additional Information
Series: CA-BRoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Coupling Nut |
| Packaging | Bulk |
| Connector Type | Plug, Male Pins |
| Color | Black |
| Voltage Rating | 500VAC, 700VDC |
| Current Rating (Amps) | 22A |
| Mounting Type | Free Hanging (In-Line) |
| Shielding | Shielded |
| Number of Positions | 7 |
| Orientation | N (Normal) |
| Shell Size - Insert | 16S-1 |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Reverse Bayonet Lock |
| Termination | Crimp |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | 0.531"" (13.50mm) |
| Material Flammability Rating | - |
| Mounting Feature | - |
| Shell Size, MIL | - |
| Contact Finish - Mating | Gold |
| Grade | - |
| Shell Material | Aluminum Alloy |
| Shell Finish | Black Zinc Cobalt |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
