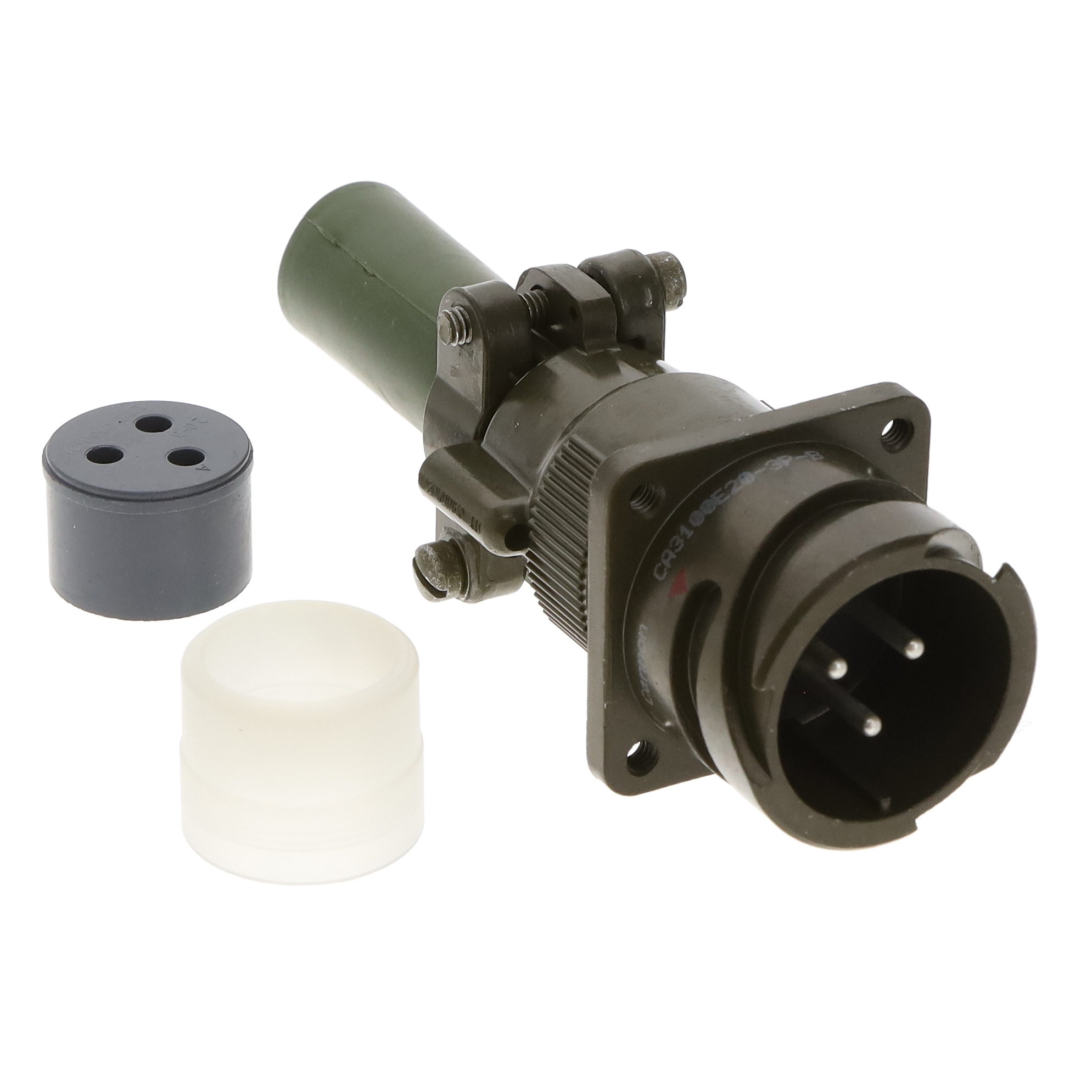

CA3100E20-3P-B
CONN RCPT W/PIN 3POSManufacturer: ITT Cannon, LLC
Categories: Circular Connector Assemblies
Quality Control: Learn More
3 Position Circular Connector Receptacle, Male Pins Solder Cup
Additional Information
Series: CA-BRoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | Backshell, Cable Clamp |
| Packaging | Bulk |
| Connector Type | Receptacle, Male Pins |
| Color | Olive Drab |
| Voltage Rating | 900VAC, 1250VDC |
| Current Rating (Amps) | 41A |
| Mounting Type | Panel Mount |
| Shielding | Unshielded |
| Number of Positions | 3 |
| Orientation | N (Normal) |
| Shell Size - Insert | 20-3 |
| Operating Temperature | -55°C ~ 125°C |
| Fastening Type | Reverse Bayonet Lock |
| Termination | Solder Cup |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Cable Opening | 0.622"" (15.80mm) |
| Material Flammability Rating | - |
| Mounting Feature | Flange |
| Shell Size, MIL | - |
| Contact Finish - Mating | Silver |
| Grade | - |
| Shell Material | Aluminum Alloy |
| Shell Finish | Olive Drab Cadmium |
| Primary Material | Metal |
| Qualification | MIL-DTL-5015 |
