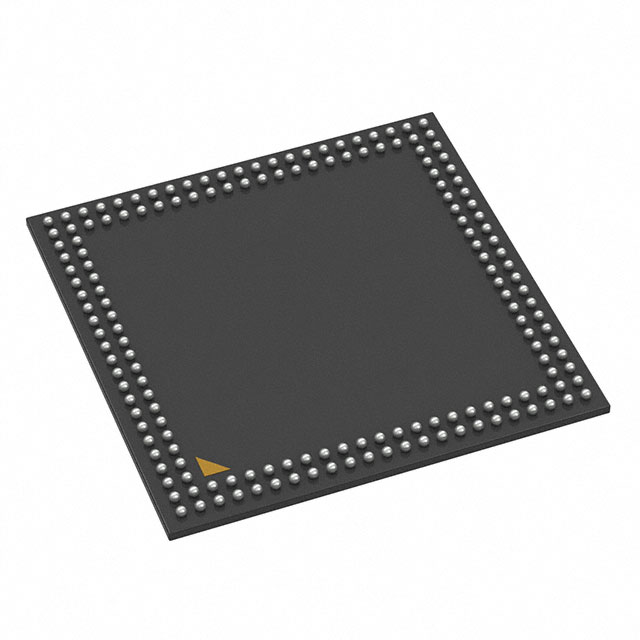

IS46LD32128B-18BPLA2
IC DRAM 4GBIT HSUL 12 168VFBGAManufacturer: ISSI, Integrated Silicon Solution Inc
Categories: Memory
Quality Control: Learn More
The ISSI IS46LD32128B-18BPLA2 is a 4Gbit SDRAM memory component utilizing LPDDR2-S4 technology. It features a HSUL_12 interface and operates at a clock frequency of 533 MHz with an access time of 5.5 ns. This volatile memory component has a memory organization of 128M x 32 and is supplied in a 168-VFBGA package. The device supports dual voltage supplies, operating between 1.14V to 1.3V and 1.7V to 1.95V. Its extended operating temperature range of -40°C to 105°C (TC) and AEC-Q100 qualification make it suitable for automotive applications. The word/page write cycle time is 15 ns.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 168-VFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 4Gbit |
| Memory Type | Volatile |
| Operating Temperature | -40°C ~ 105°C (TC) |
| Voltage - Supply | 1.14V ~ 1.3V, 1.7V ~ 1.95V |
| Technology | SDRAM - Mobile LPDDR2-S4 |
| Clock Frequency | 533 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 168-VFBGA (12x12) |
| Grade | Automotive |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | HSUL_12 |
| Access Time | 5.5 ns |
| Memory Organization | 128M x 32 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
