KIT - IVT-S-100-U0-I-CAN2-12/24 W/ CONNECTOR
KIT - IVT-S-100-U0-I-CAN2-12/24Manufacturer: Isabellenhuette USA
Categories: Current Sensors
Quality Control: Learn More
The Isabellenhuette USA KIT-IVT-S-100-U0-I-CAN2-12-24-W-CONNECTOR is a comprehensive current sensing solution featuring the IVT-S series shunt-based sensor. This module is engineered for precise, bidirectional DC current measurement up to 100A with an impressive accuracy of ±0.4% and linearity of 0.01%. Operating within a wide supply voltage range of 5.5V to 40V and supporting a maximum supply current of 80mA, it is designed for robust performance in demanding environments, with an operating temperature range of -40°C to 105°C. The module's chassis mount design facilitates integration into various systems. Applications for this component include industrial automation, electric vehicle power management, and renewable energy systems where accurate current monitoring is critical.
Additional Information
Series: IVT-SRoHS Status: ROHS3 CompliantManufacturer Lead Time: 42 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Module |
| Polarization | Bidirectional |
| Sensitivity | - |
| Mounting Type | Chassis Mount |
| Output | - |
| Frequency | - |
| Accuracy | ±0.4% |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 5.5V ~ 40V |
| Response Time | - |
| Sensor Type | Shunt |
| Linearity | 0.01% |
| For Measuring | DC |
| Current - Supply (Max) | 80mA |
| Current - Sensing | 100A |
| Supplier Device Package | - |
| Grade | - |
| Number of Channels | 1 |
| Qualification | - |
Request a Quote
Clients Also Buy

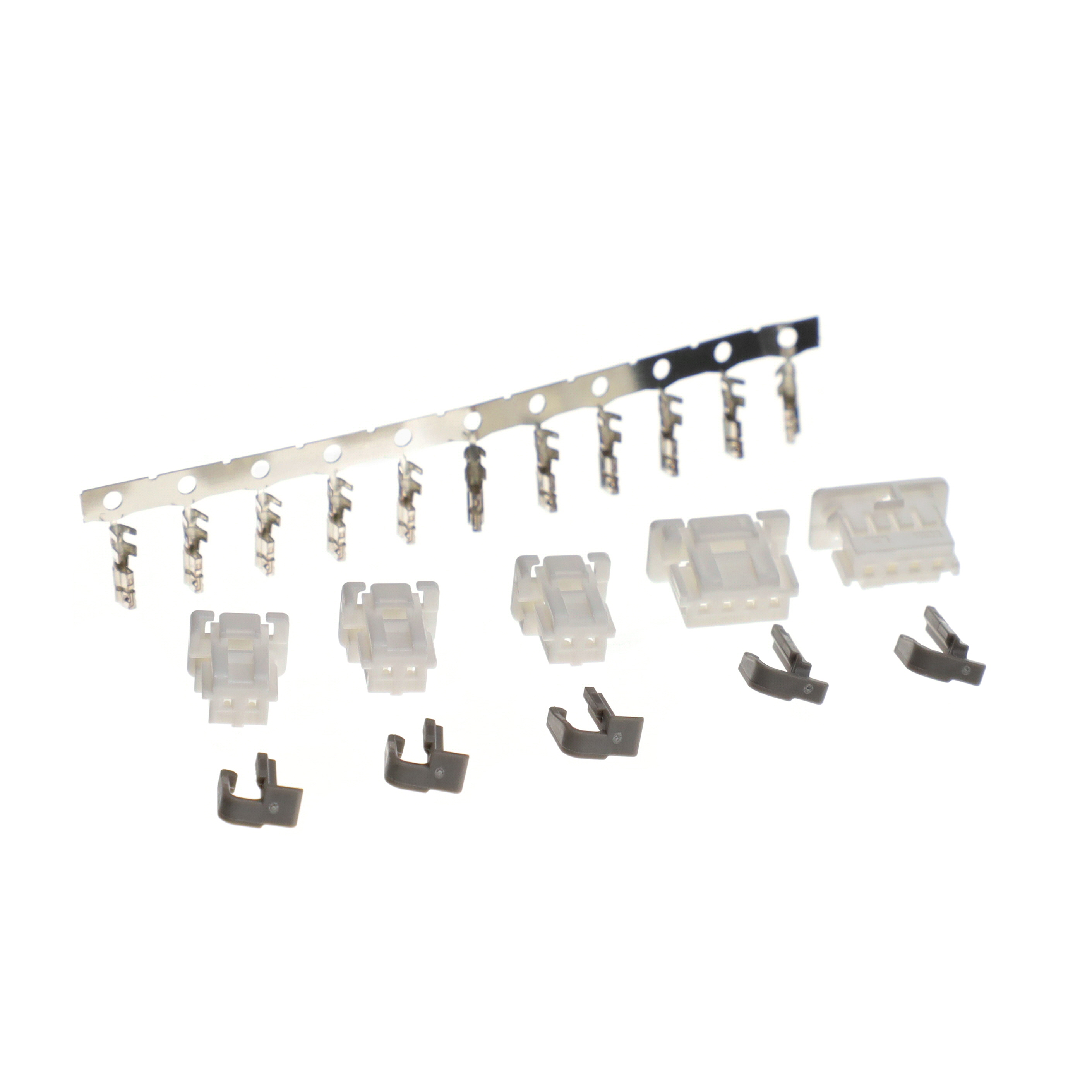

IVT-S CONNECTOR SET
