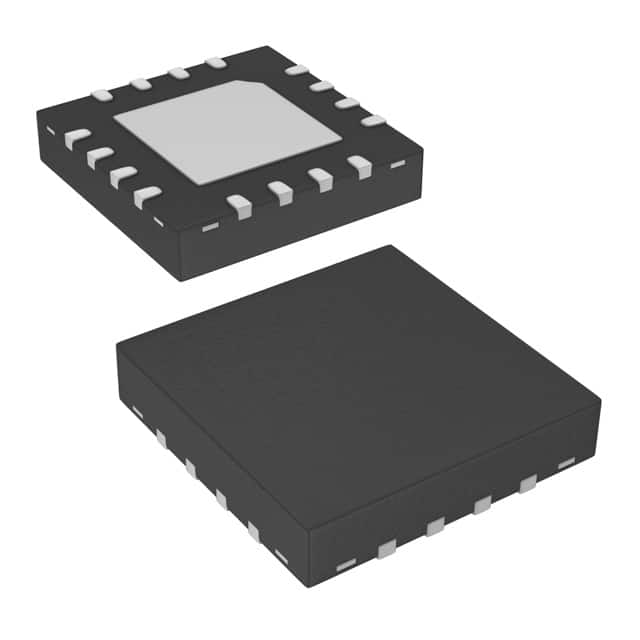

ISL43L841IRZ
IC SWITCH SP4TX2 480MOHM 16TQFNManufacturer: Intersil
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 4:1 480mOhm (Typ) 16-TQFN (3x3)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 480mOhm (Typ) |
| -3db Bandwidth | - |
| Supplier Device Package | 16-TQFN (3x3) |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | -65pC |
| Crosstalk | -100dB @ 100kHz |
| Switch Circuit | SP4T |
| Multiplexer/Demultiplexer Circuit | 4:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 120mOhm |
| Switch Time (Ton, Toff) (Max) | 34ns, 24ns |
| Channel Capacitance (CS(off), CD(off)) | 62pF, 218pF |
| Current - Leakage (IS(off)) (Max) | 50nA |
| Number of Circuits | 2 |
