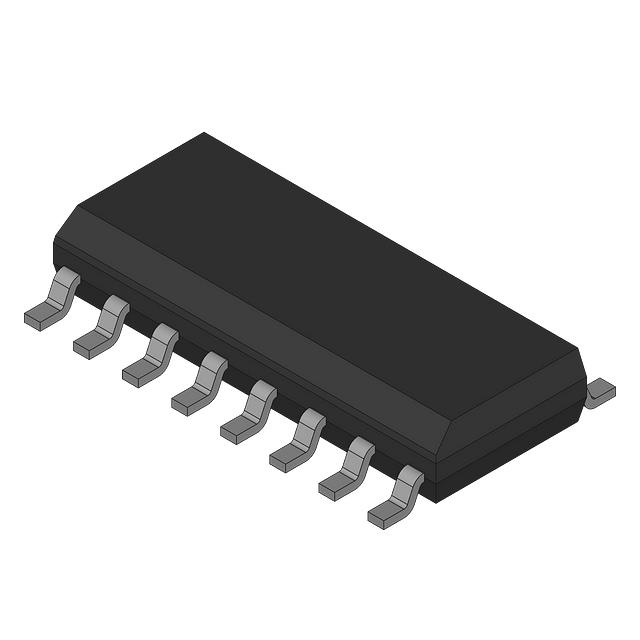

HI9P0548-9
IC MUX 8:1 1.8KOHM 16SOICManufacturer: Intersil
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 8:1 1.8kOhm 16-SOIC
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 16-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 1.8kOhm |
| -3db Bandwidth | - |
| Supplier Device Package | 16-SOIC |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 8:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 126Ohm |
| Switch Time (Ton, Toff) (Max) | 300ns, 300ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 25pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Number of Circuits | 1 |
Request a Quote
