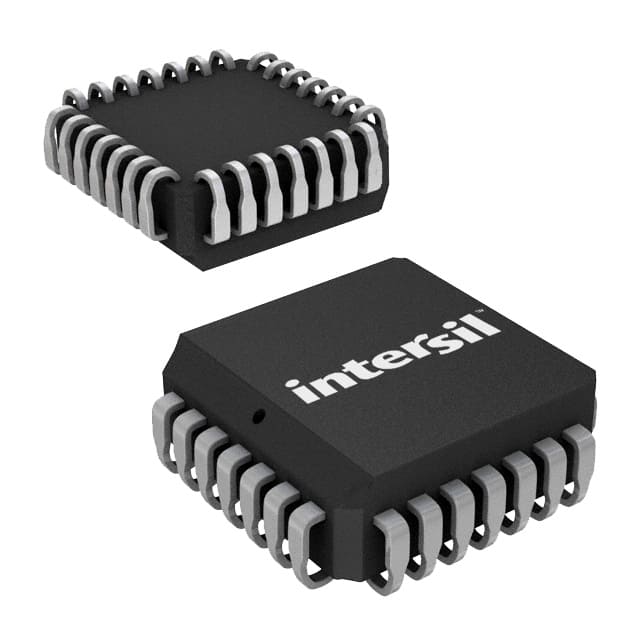

HI4P0506-5Z
IC MUX 16:1 400OHM 28PLCCManufacturer: Intersil
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
1 Circuit IC Switch 16:1 400Ohm 28-PLCC (11.51x11.51)
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 75°C (TA) |
| On-State Resistance (Max) | 400Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 28-PLCC (11.51x11.51) |
| Voltage - Supply, Single (V+) | - |
| Voltage - Supply, Dual (V±) | ±15V |
| Charge Injection | - |
| Crosstalk | - |
| Switch Circuit | - |
| Multiplexer/Demultiplexer Circuit | 16:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 20Ohm |
| Switch Time (Ton, Toff) (Max) | 250ns, 250ns (Typ) |
| Channel Capacitance (CS(off), CD(off)) | 10pF, 52pF |
| Current - Leakage (IS(off)) (Max) | 30pA (Typ) |
| Number of Circuits | 1 |
Request a Quote
