IR3623MTRPBF
IR3623 - HIGH FREQUENCY 2-PHASEManufacturer: International Rectifier
Categories: DC DC Switching Controllers
Quality Control: Learn More
Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-MLPQ (5x5)
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 32-VFQFN Exposed Pad |
| Output Type | PWM Signal |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Output Configuration | Positive |
| Frequency - Switching | 200kHz ~ 1.2MHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 8.5V ~ 14.5V |
| Supplier Device Package | 32-MLPQ (5x5) |
| Synchronous Rectifier | Yes |
| Control Features | Current Limit, Enable, Frequency Control, Power Good, Sequencing, Soft Start, Tracking |
| Serial Interfaces | - |
| Output Phases | 2 |
| Duty Cycle (Max) | 85% |
| Clock Sync | Yes |
| Number of Outputs | 2 |
Request a Quote
Clients Also Buy

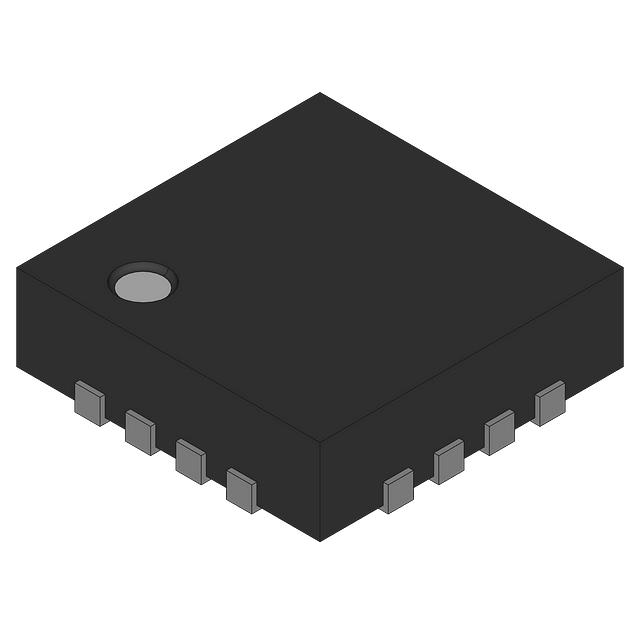

IR3710MTRPBF
