5ASTFD5K3F40I3NES
IC SOC CORTEX-A9 1.05GHZ 1517BGAManufacturer: Intel
Categories: System On Chip (SoC)
Quality Control: Learn More

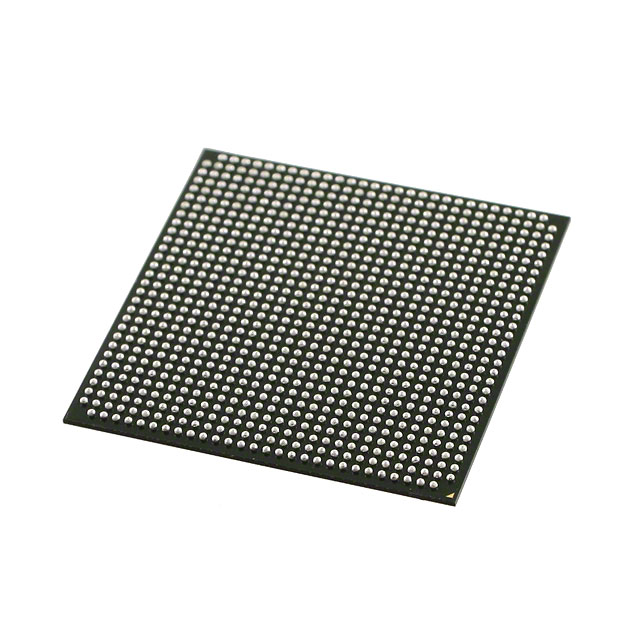

Intel Arria V ST SoC, part number 5ASTFD5K3F40I3NES, is a dual ARM Cortex-A9 MPCore with CoreSight System on Chip. This device features 462K logic elements and operates at 1.05GHz, housed in a 1517-FBGA, FC (40x40) package. Connectivity options include EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. Peripherals such as DMA, POR, and WDT are integrated. This SoC is suitable for demanding applications in the automotive, industrial, and communications sectors. The operating temperature range is -40°C to 100°C (TJ).
Additional Information
Series: Arria V STRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 1517-BBGA, FCBGA |
| Speed | 1.05GHz |
| RAM Size | 64kb |
| Operating Temperature | -40°C ~ 100°C (TJ) |
| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
| Primary Attributes | FPGA - 462K Logic Elements |
| Connectivity | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 1517-FBGA, FC (40x40) |
| Architecture | MCU, FPGA |
| Flash Size | - |
