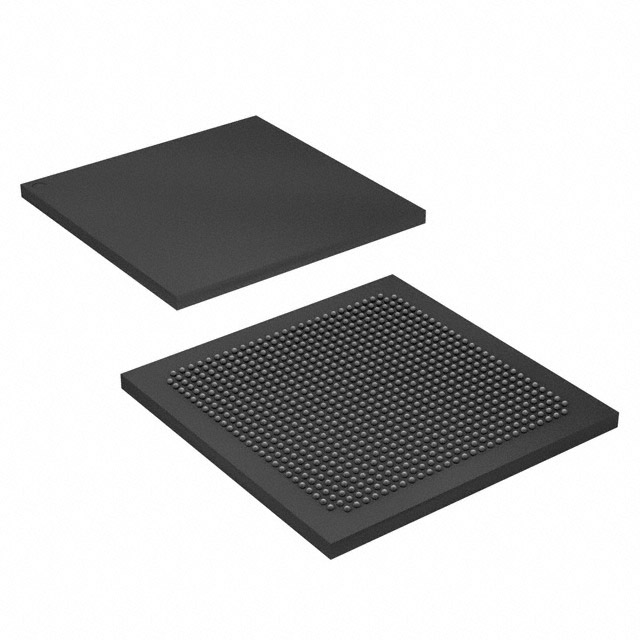

10AS022E4F29E3SG
IC SOC CORTEX-A9 1.5GHZ 780FBGAManufacturer: Intel
Categories: System On Chip (SoC)
Quality Control: Learn More
Intel Arria 10 SX series System On Chip (SoC) IC, part number 10AS022E4F29E3SG, features dual ARM Cortex-A9 MPCore processors with CoreSight for embedded processing. This device offers 220,000 logic elements and operates at a 1.5GHz clock speed. Connectivity options include EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, and USB OTG. The Arria 10 SX family is designed for high-performance applications in industries such as telecommunications, data center acceleration, and military/aerospace systems. The component is housed in a 780-FBGA, FC (29x29) package and operates within a temperature range of 0°C to 100°C (TJ). Peripherals include DMA, POR, and WDT, with 256KB of RAM.
Additional Information
Series: Arria 10 SXRoHS Status: RoHS CompliantManufacturer Lead Time: 12 week(s)Product Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 780-BBGA, FCBGA |
| Speed | 1.5GHz |
| RAM Size | 256KB |
| Operating Temperature | 0°C ~ 100°C (TJ) |
| Core Processor | Dual ARM® Cortex®-A9 MPCore™ with CoreSight™ |
| Primary Attributes | FPGA - 220K Logic Elements |
| Connectivity | EBI/EMI, Ethernet, I2C, MMC/SD/SDIO, SPI, UART/USART, USB OTG |
| Peripherals | DMA, POR, WDT |
| Supplier Device Package | 780-FBGA, FC (29x29) |
| Architecture | MCU, FPGA |
| Flash Size | - |
