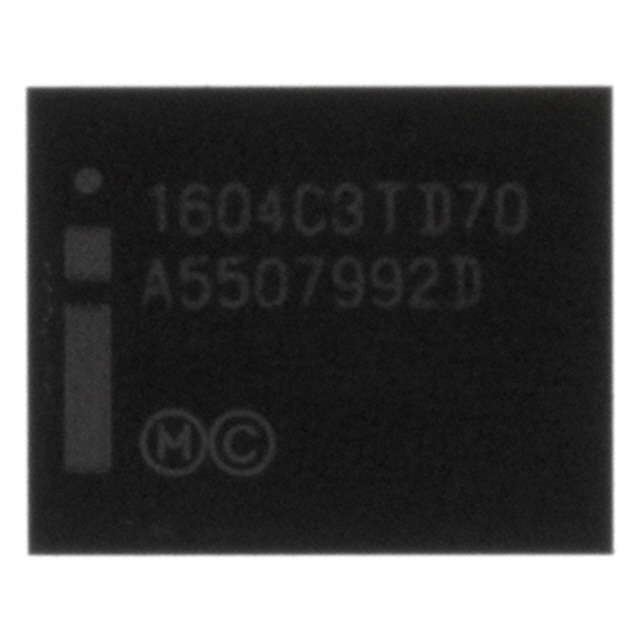

RD28F1604C3TD70SB93
IC FLASH RAM 16MBIT PAR 66SCSPManufacturer: Intel
Categories: Memory
Quality Control: Learn More
Intel RD28F1604C3TD70SB93 is a high-performance memory component featuring both FLASH and SRAM technologies. This device offers a 16Mbit FLASH memory array and a 4Mbit SRAM array, both accessed via a parallel interface. With an access time of 70 ns, it is well-suited for applications requiring rapid data retrieval. The memory organization is designed for efficient operation, and its non-volatile FLASH and volatile SRAM memory types provide flexibility for data storage and processing. The component is housed in a compact 66-SCSP (8x12) package, suitable for surface-mount applications. Its operating temperature range is -25°C to 85°C (TC), and it operates from a 2.7V to 3.3V supply. This memory solution finds application in telecommunications, industrial automation, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 66-LFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Memory Size | 16Mbit (FLASH), 4Mbit (RAM) |
| Memory Type | Non-Volatile, Volatile |
| Operating Temperature | -25°C ~ 85°C (TC) |
| Voltage - Supply | 2.7V ~ 3.3V |
| Technology | FLASH, SRAM |
| Memory Format | FLASH, RAM |
| Supplier Device Package | 66-SCSP (8x12) |
| Write Cycle Time - Word, Page | 70ns |
| Memory Interface | Parallel |
| Access Time | 70 ns |
| Memory Organization | - |
| Programmable | Not Verified |
