EZ6301QI
IC REG TRPL BCK/LNR 2.5MHZ 40QFNManufacturer: Intel
Categories: Linear + Switching
Quality Control: Learn More
Intel Enpirion® EZ6301QI is a power management integrated circuit featuring a triple output voltage regulator. This device combines one step-down (buck) converter with two linear (LDO) regulators, offering flexible power solutions. It operates with a switching frequency of 2.5MHz and supports input voltages ranging from 1.6V to 3.6V. The EZ6301QI provides three distinct output channels: one capable of 1.5A with an output voltage range of 0.6V to 3.3V, and two additional channels each delivering 300mA with an output voltage range of 0.9V to 3.3V. This component is housed in a 40-pin QFN (7x4) package with an exposed pad for enhanced thermal performance and is designed for surface mount applications. The operating temperature range is -40°C to 85°C (TA). The Enpirion® EZ6301QI finds application in various electronic systems requiring efficient and compact power delivery, including communications infrastructure and industrial control systems. It is supplied in Tape & Reel packaging.
Additional Information
Series: Enpirion®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

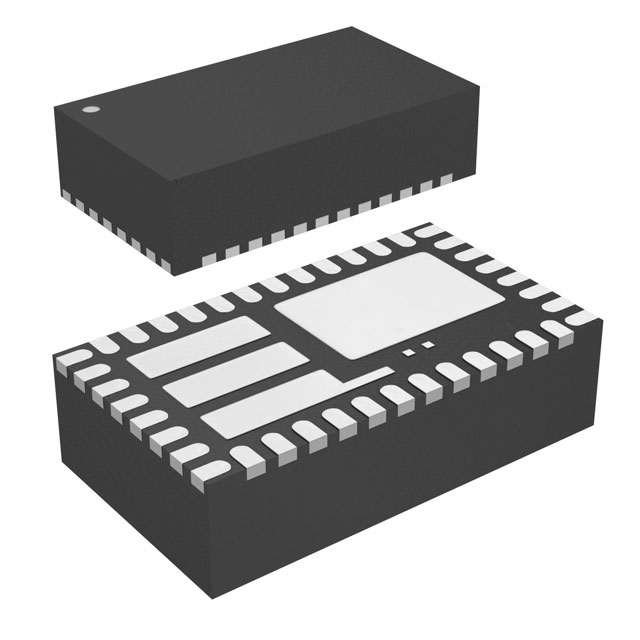

| Package / Case | 40-FQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.6V ~ 3.6V |
| Frequency - Switching | 2.5MHz |
| Topology | Step-Down (Buck) (1), Linear (LDO) (2) |
| Supplier Device Package | 40-QFN (7x4) |
| Voltage/Current - Output 1 | 0.6V ~ 3.3V, 1.5A |
| Voltage/Current - Output 2 | 0.9V ~ 3.3V, 300mA |
| Voltage/Current - Output 3 | 0.9V ~ 3.3V, 300mA |
| w/LED Driver | No |
| w/Supervisor | No |
| w/Sequencer | No |
| Number of Outputs | 3 |
