EM2130L01QI
DC DC CONVERTER 0.7-1.325VManufacturer: Intel
Categories: DC DC Converters
Quality Control: Learn More

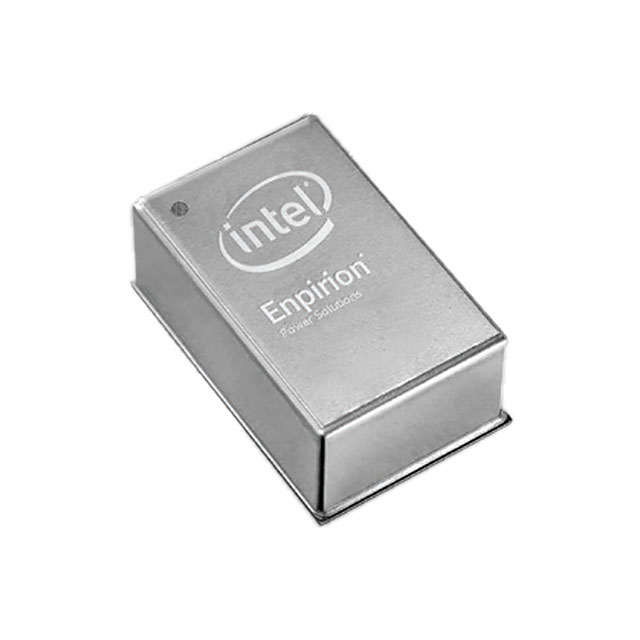

Intel Enpirion® EM2130L01QI is a non-isolated digital DC-DC converter module designed for high-density power applications. This Point-of-Load (PoL) module offers a single output with an adjustable voltage range of 0.7V to 1.325V and a maximum output current of 30A. It operates from a wide input voltage range of 4.5V to 16V, featuring an efficiency of up to 90%. The EM2130L01QI is housed in a compact 100-QFN (17x11) package, measuring 17.0mm x 11.0mm x 6.8mm, and is suitable for surface mounting. Its operational temperature range is -40°C to 85°C. This component is commonly utilized in Information Technology Equipment (ITE) for commercial applications, providing efficient and stable power delivery.
Additional Information
Series: Enpirion®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 100-PowerBQFN Module |
| Size / Dimension | 0.67"" L x 0.43"" W x 0.27"" H (17.0mm x 11.0mm x 6.8mm) |
| Mounting Type | Surface Mount |
| Type | Non-Isolated PoL Module, Digital |
| Operating Temperature | -40°C ~ 85°C |
| Applications | ITE (Commercial) |
| Voltage - Input (Max) | 16V |
| Efficiency | 90% |
| Current - Output (Max) | 30A |
| Supplier Device Package | 100-QFN (17x11) |
| Voltage - Input (Min) | 4.5V |
| Voltage - Output 1 | 0.7 ~ 1.325V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Number of Outputs | 1 |
