EVB-EP5382QI
EVAL BOARD FOR EP5382QIManufacturer: Intel
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

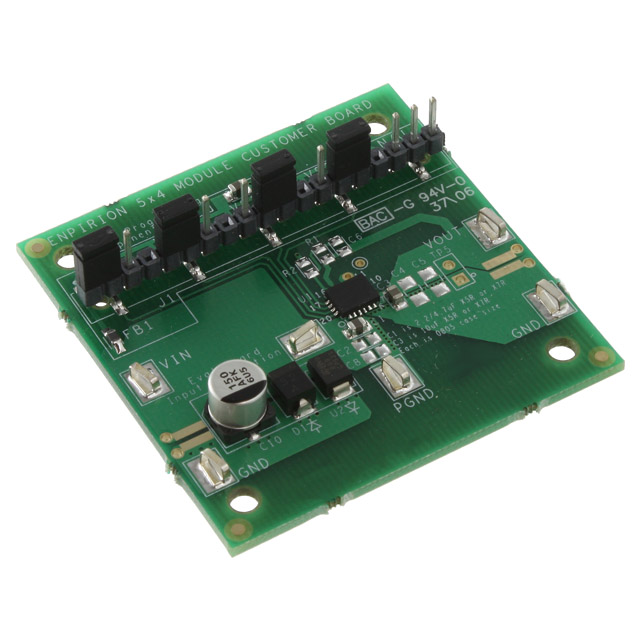

Intel Enpirion® EVB-EP5382QI evaluation board for the EP5382QI DC/DC step-down converter. This fully populated, non-isolated, single-output board supports adjustable output voltages from 1.2V to 3.3V, configurable via the EP5382QI IC. The device features a 4MHz switching frequency and a maximum output current of 800mA, operating from an input voltage range of 2.4V to 5.5V. The buck regulator topology ensures efficient power conversion. This evaluation platform is suitable for applications in consumer electronics, industrial automation, and telecommunications where compact and efficient power solutions are critical. The supplied contents include the evaluation board(s).
Additional Information
Series: Enpirion®RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Voltage - Output | 1.2V, 1.8V, 2.5V, 2.7V, 2.8V, 3V or 3.3V |
| Voltage - Input | 2.4V ~ 5.5V |
| Current - Output | 800mA |
| Frequency - Switching | 4MHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | EP5382QI |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
