EVB-EN5364QI
EVAL BOARD FOR EN5364QIManufacturer: Intel
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

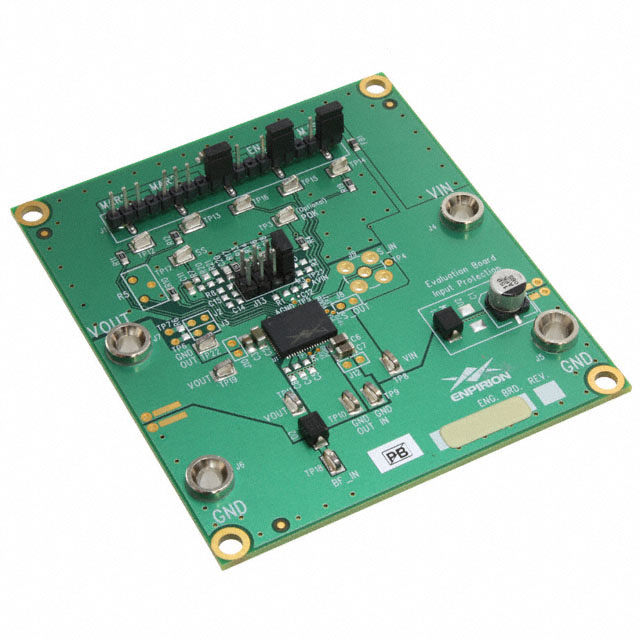

Intel Enpirion® EVB-EN5364QI is a fully populated evaluation board designed to showcase the capabilities of the EN5364QI DC/DC step-down converter. This non-isolated, buck topology solution offers a high switching frequency of 4MHz, enabling compact designs and efficient power conversion. The board supports input voltages ranging from 2.375V to 6.6V and provides configurable output voltages of 0.804V, 0.998V, 1V, or 1.2V, with a maximum output current of 6A. This evaluation platform is well-suited for applications requiring high-density power delivery in sectors such as telecommunications, industrial automation, and data centers. The supplied contents include the evaluation board(s) for immediate assessment.
Additional Information
Series: Enpirion®RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Voltage - Output | 0.804V, 0.998V, 1V or 1.2V |
| Voltage - Input | 2.375V ~ 6.6V |
| Current - Output | 6A |
| Frequency - Switching | 4MHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | EN5364QI |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
