EVB-EN5335QI
EVAL BOARD FOR EN5335QIManufacturer: Intel
Categories: DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
Quality Control: Learn More

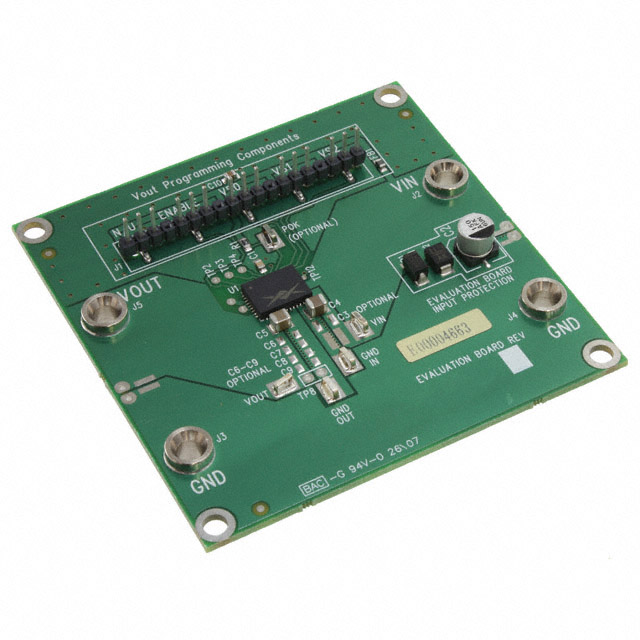

Intel Enpirion® EVB-EN5335QI evaluation board facilitates the assessment of the EN5335QI, a highly integrated 3A non-isolated DC-DC step-down (buck) converter. This fully populated board is designed to showcase the performance of the EN5335QI, featuring a high switching frequency of 5MHz for compact solution size. Input voltage range is 2.375V to 6.6V, with selectable non-isolated output voltages including 0.8V, 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, and 3.3V. The EN5335QI is well-suited for applications requiring efficient power conversion in compact footprints, such as networking equipment, consumer electronics, and industrial control systems. The supplied contents include the evaluation board(s) for immediate testing and analysis.
Additional Information
Series: Enpirion®RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Voltage - Output | 0.8V, 1.2V, 1.25V, 1.5V, 1.8V, 2.5V, or 3.3V |
| Voltage - Input | 2.375V ~ 6.6V |
| Current - Output | 3A |
| Frequency - Switching | 5MHz |
| Regulator Topology | Buck |
| Board Type | Fully Populated |
| Utilized IC / Part | EN5335QI |
| Supplied Contents | Board(s) |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | 1, Non-Isolated |
