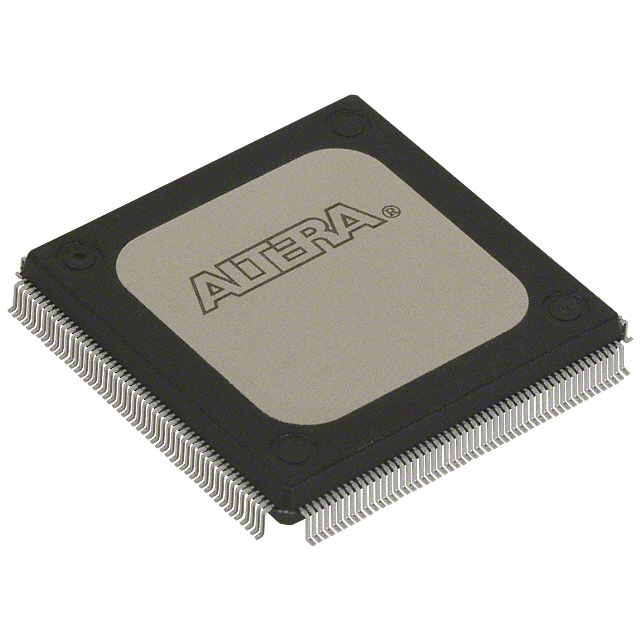

EPM7256SRI208-10N
IC CPLD 256MC 10NS 208RQFPManufacturer: Intel
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Intel MAX 7000S series EPM7256SRI208-10N is a 256 macrocell CPLD, featuring a 10 ns propagation delay and 5000 gates. This device offers 16 logic array blocks (LABs) and supports in-system programmability. With 164 user I/O pins, it is housed in a 208-RQFP (28x28) package with an exposed pad, suitable for surface mounting. The operating temperature range is -40°C to 85°C (TA), and it requires an internal supply voltage between 4.5V and 5.5V. This component is widely utilized in industrial automation, telecommunications infrastructure, and consumer electronics for control logic and interface bridging applications.
Additional Information
Series: MAX® 7000SRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 208-BFQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable |
| Number of Gates | 5000 |
| Number of Macrocells | 256 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Delay Time tpd(1) Max | 10 ns |
| Supplier Device Package | 208-RQFP (28x28) |
| Number of Logic Elements/Blocks | 16 |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of I/O | 164 |
| Programmable | Not Verified |
