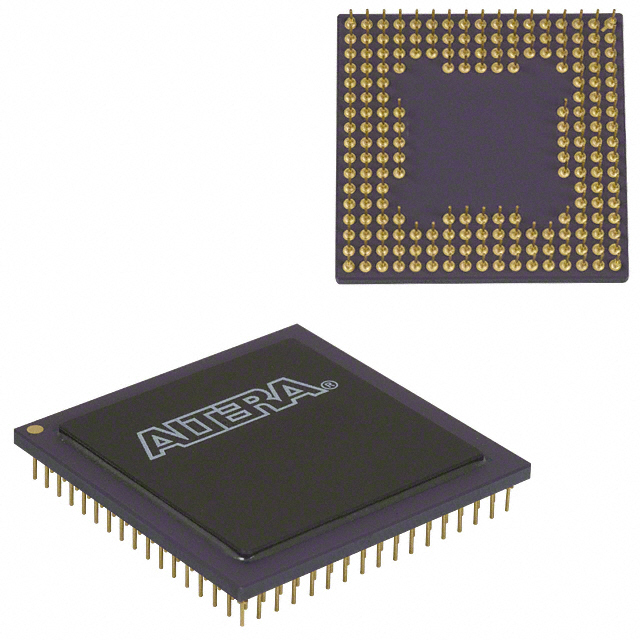

EPM7256EGI192-20
IC CPLD 256MC 20NS 192PGAManufacturer: Intel
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Intel MAX® 7000 EPM7256EGI192-20 is a 256-macrocell CPLD offering 5000 gates of logic. This device features a propagation delay of 20 ns and supports up to 164 user I/O pins. Designed for demanding applications, it incorporates 16 logic array blocks (LABs) and operates within a supply voltage range of 4.5V to 5.5V. The EPM7256EGI192-20 is housed in a 192-pin Plastic Ball Grid Array (PBGA) package, suitable for surface mounting. Its EE PLD programmable type ensures non-volatile configuration. This component is commonly utilized in industrial automation, telecommunications, and consumer electronics sectors. The operating temperature range is from -40°C to 85°C (TA).
Additional Information
Series: MAX® 7000RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 192-BPGA |
| Mounting Type | Surface Mount |
| Programmable Type | EE PLD |
| Number of Gates | 5000 |
| Number of Macrocells | 256 |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Delay Time tpd(1) Max | 20 ns |
| Supplier Device Package | 192-PGA (44.7x44.7) |
| Number of Logic Elements/Blocks | 16 |
| Voltage Supply - Internal | 4.5V ~ 5.5V |
| Number of I/O | 164 |
| Programmable | Not Verified |
