EPM7160SLC84-10N
IC CPLD 160MC 10NS 84PLCCManufacturer: Intel
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Intel MAX® 7000S series EPM7160SLC84-10N is a 160-macrocell CPLD featuring a 10 ns pin-to-pin delay. This device offers 64 user I/O pins and supports in-system programming. With approximately 3200 gates and 10 logic array blocks, the EPM7160SLC84-10N is suitable for complex logic implementations. Its 84-pin PLCC package facilitates surface mounting for a variety of applications. The operating voltage range is 4.75V to 5.25V, and it operates within a temperature range of 0°C to 70°C. This component is widely utilized in industrial, telecommunications, and consumer electronics sectors for control functions and interface logic.
Additional Information
Series: MAX® 7000SRoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |

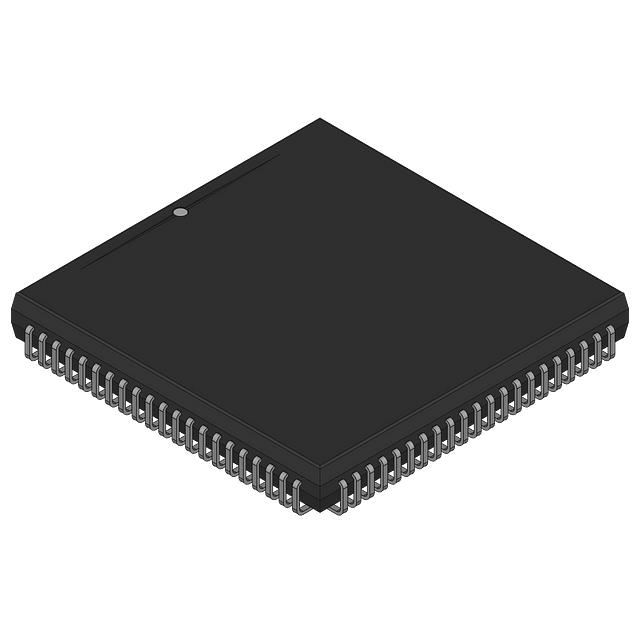

| Package / Case | 84-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable |
| Number of Gates | 3200 |
| Number of Macrocells | 160 |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Delay Time tpd(1) Max | 10 ns |
| Supplier Device Package | 84-PLCC (29.31x29.31) |
| Number of Logic Elements/Blocks | 10 |
| Voltage Supply - Internal | 4.75V ~ 5.25V |
| Number of I/O | 64 |
| Programmable | Not Verified |
