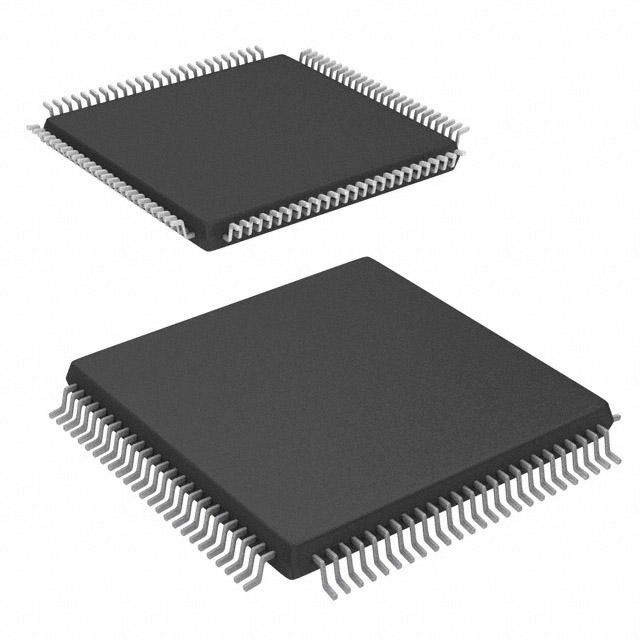

EPM570T100C3N
IC CPLD 440MC 5.4NS 100TQFPManufacturer: Intel
Categories: CPLDs (Complex Programmable Logic Devices)
Quality Control: Learn More
Intel MAX® II EPM570T100C3N is a 440 macrocell Complex Programmable Logic Device (CPLD) with a propagation delay of 5.4 ns. This device offers 76 user I/O pins and is housed in a 100-TQFP package. It features 570 logic elements and supports in-system programmability. The EPM570T100C3N operates across a junction temperature range of 0°C to 85°C and requires internal supply voltages of 2.5V and 3.3V. This CPLD is suitable for applications in industrial automation, communications infrastructure, and consumer electronics. The component is provided in tray packaging.
Additional Information
Series: MAX® IIRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 100-TQFP |
| Mounting Type | Surface Mount |
| Programmable Type | In System Programmable |
| Number of Macrocells | 440 |
| Operating Temperature | 0°C ~ 85°C (TJ) |
| Delay Time tpd(1) Max | 5.4 ns |
| Supplier Device Package | 100-TQFP (14x14) |
| Number of Logic Elements/Blocks | 570 |
| Voltage Supply - Internal | 2.5V, 3.3V |
| Number of I/O | 76 |
| Programmable | Not Verified |
