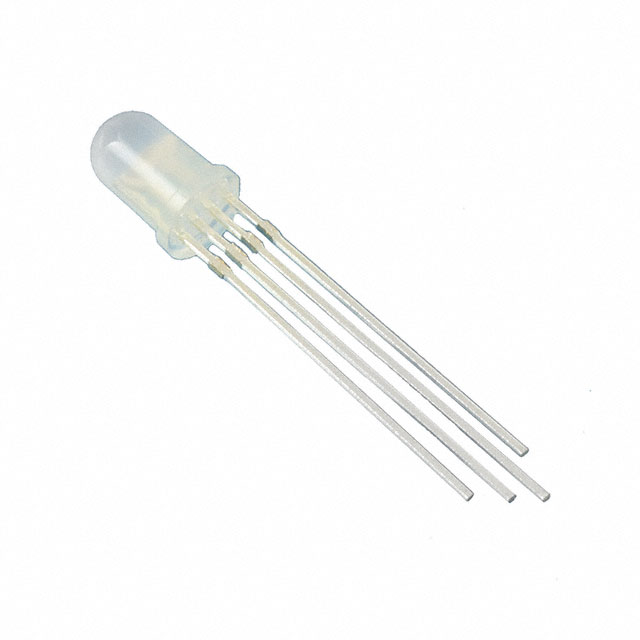

HV-5RGB60
LED RGB DIFFUSED 5MM T/HManufacturer: Inolux
Categories: LED Indication - Discrete
Quality Control: Learn More
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.4V Green, 3.4V Blue Radial - 4 Leads
Additional Information
Series: HV-5RGBXXRoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | Radial - 4 Leads |
| Color | Red, Green, Blue (RGB) |
| Size / Dimension | - |
| Mounting Type | Through Hole |
| Millicandela Rating | 600mcd Red, 1000mcd Green, 500mcd Blue |
| Configuration | Common Cathode |
| Voltage - Forward (Vf) (Typ) | 2V Red, 3.4V Green, 3.4V Blue |
| Lens Color | White |
| Current - Test | 20mA Red, 20mA Green, 20mA Blue |
| Viewing Angle | 60° |
| Height (Max) | 8.90mm |
| Wavelength - Peak | 632nm Red, 520nm Green, 470nm Blue |
| Wavelength - Dominant | 624nm Red, 525nm Green, 470nm Blue |
| Supplier Device Package | 5mm |
| Lens Transparency | Diffused |
| Lens Style | Round with Domed Top |
| Lens Size | 5mm, T-1 3/4 |
Request a Quote
Clients Also Buy

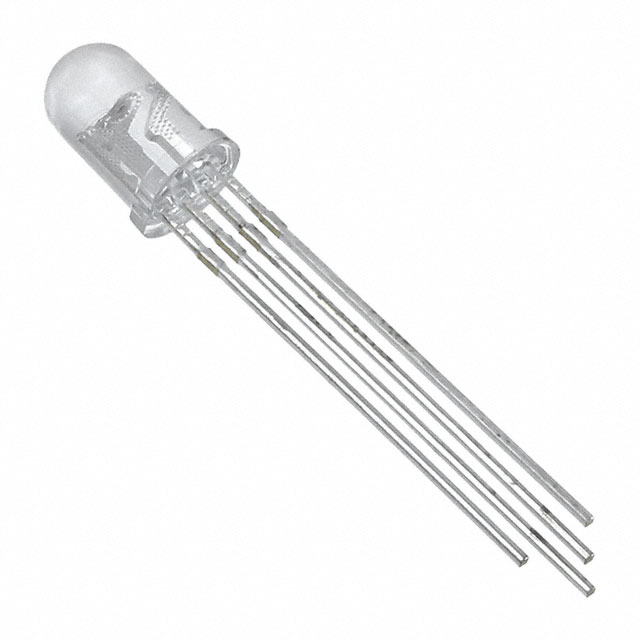

HV-5RGB25
LED RGB CLEAR 5MM T/H
IN-S11TXTZR5G5B
LED

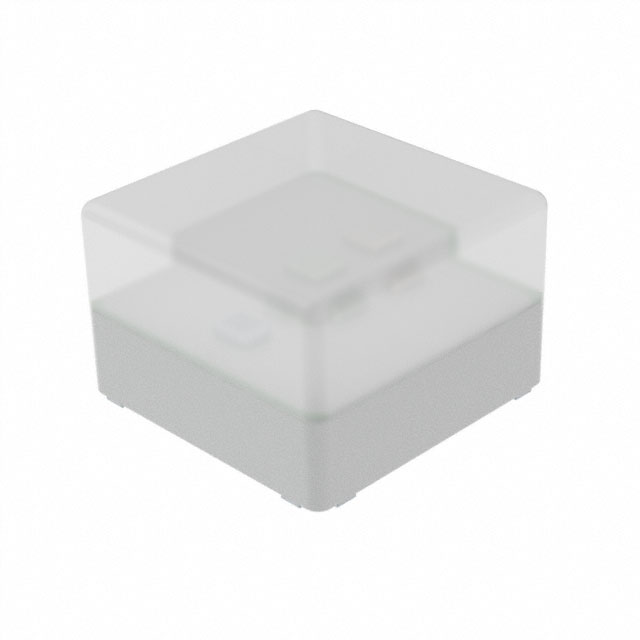

IN-B101FCH-7309
