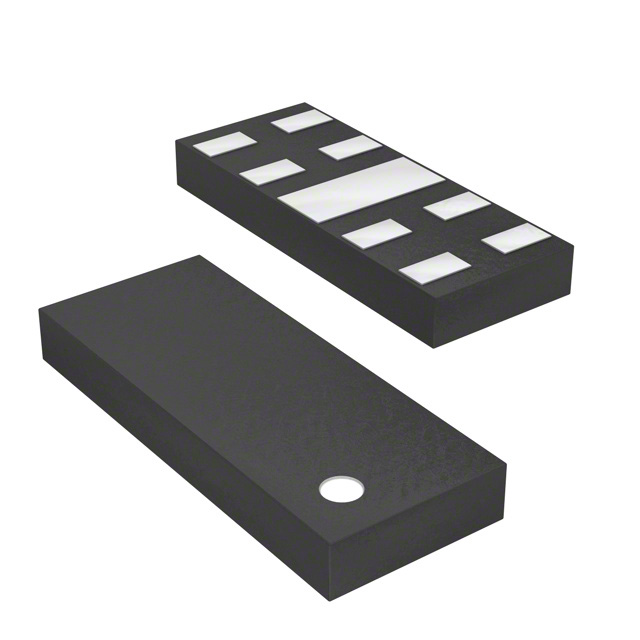

ESD3V3U4ULCE6327XTSA1
TVS DIODE 3.3VWM 11VC TSLP-9-1Manufacturer: Infineon Technologies
Categories: TVS Diodes
Quality Control: Learn More
Infineon Technologies ESD3V3U4ULCE6327XTSA1 is a unidirectional TVS diode designed for transient voltage suppression. Featuring a 3.3V reverse standoff voltage and a typical clamping voltage of 11V at 3A (8/20µs), this device offers robust protection against electrostatic discharge and other transient events. With a low typical capacitance of 0.4pF at 1MHz, it minimizes signal integrity impact. The component is packaged in a compact PG-TSLP-9-1 (9-XFDFN) for surface mounting, operating across a temperature range of -40°C to 125°C. Utilized in applications such as Ethernet and HDMI, the ESD3V3U4ULCE6327XTSA1 provides essential protection for sensitive circuitry.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 9-XFDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | 0.4pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | PG-TSLP-9-1 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 11V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
