ESD300B102LRHE6327XTSA1
TVS DIODE 3.3VWM 10.5V TSLP-2-17Manufacturer: Infineon Technologies
Categories: TVS Diodes
Quality Control: Learn More

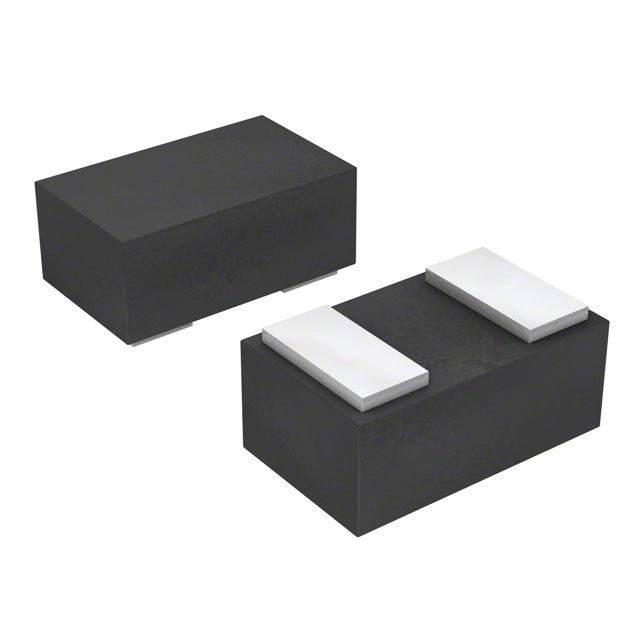

Infineon Technologies ESD300B102LRHE6327XTSA1 is a transient voltage suppressor (TVS) diode designed for robust protection in demanding applications. This bidirectional device offers a low clamping voltage of 10.5V (Typ) at a peak pulse current of 18A (8/20µs), with a reverse standoff voltage of 3.3V (Max). Featuring a low capacitance of 1.2pF @ 1MHz, it minimizes signal integrity impact, making it suitable for high-speed interfaces like Ethernet. The component delivers 260W of peak pulse power and operates across a wide temperature range of -55°C to 125°C. Packaged in a compact PG-TSLP-2-17 (SOD-882 equivalent) for surface mounting, this TVS diode is provided on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-882 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | Ethernet |
| Capacitance @ Frequency | 1.2pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 18A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | PG-TSLP-2-17 |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 10.5V (Typ) |
| Power - Peak Pulse | 260W |
| Power Line Protection | No |
