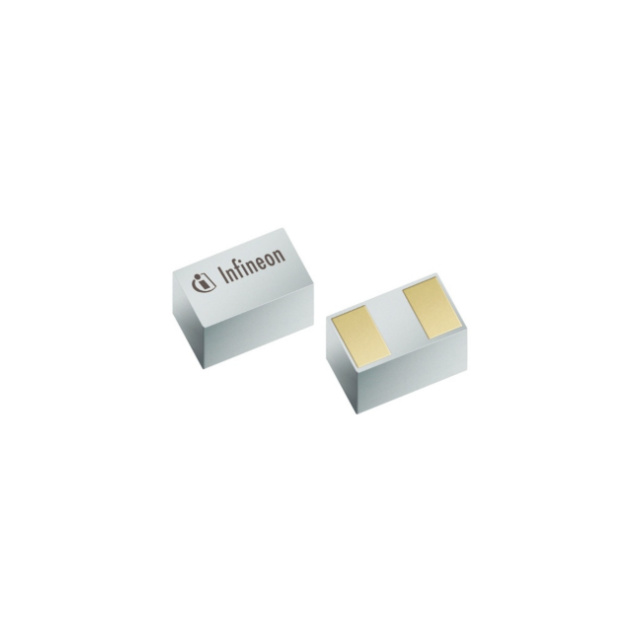

ESD218B102ELE6327XTMA1
TVS DIODE 24VWM 44.5VC TSLP-2-20Manufacturer: Infineon Technologies
Categories: TVS Diodes
Quality Control: Learn More
Infineon Technologies TVS Diode, ESD218B102ELE6327XTMA1, is a bi-directional transient voltage suppressor designed for robust overvoltage protection. This surface mount device, packaged in a PG-TSLP-2-20 (0402 Metric), offers a 24V reverse standoff voltage and a breakdown voltage of 24.3V minimum. It features a low clamping voltage of 44.5V at a peak pulse current (Ipp) of 1.5A (8/20µs), with a peak pulse power rating of 67W. The diode exhibits a low capacitance of 3pF at 1MHz, making it suitable for high-speed data lines. Operating across a wide temperature range of -55°C to 150°C, this component is utilized in general-purpose applications across various industries requiring protection against electrostatic discharge events.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 1.5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Supplier Device Package | PG-TSLP-2-20 |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 24.3V |
| Voltage - Clamping (Max) @ Ipp | 44.5V |
| Power - Peak Pulse | 67W |
| Power Line Protection | No |
