ESD201B203LRHE6327XTSA1
TVS DIODE 5.5VWM 12.1VC TSLP-3Manufacturer: Infineon Technologies
Categories: TVS Diodes
Quality Control: Learn More

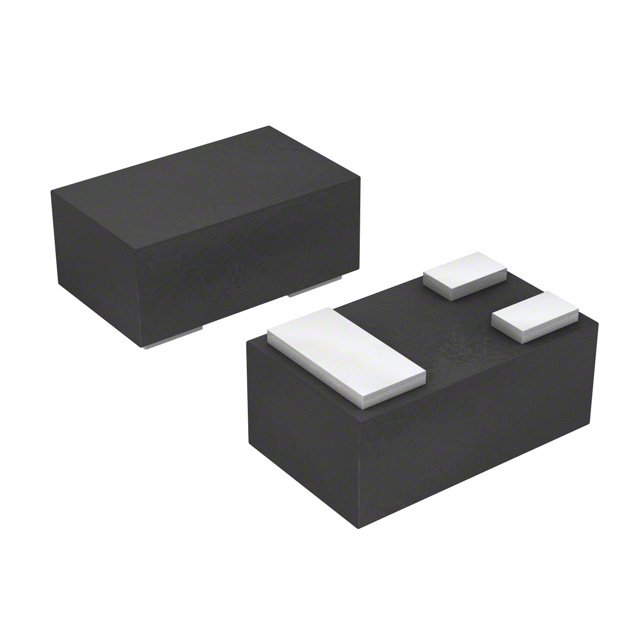

Infineon Technologies ESD201B203LRHE6327XTSA1 TVS Diode, featuring a 5.5V reverse standoff voltage and a 12.1V clamping voltage at 16A (8/20µs) peak pulse current. This bidirectional device offers a low 5pF capacitance at 1MHz, making it suitable for high-speed data line protection. The TSLP-3 package (SC-101, SOT-883) is designed for surface mounting with a tape and reel supply. Operating across a -55°C to 125°C temperature range, this component finds application in general-purpose protection across various industries.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-101, SOT-883 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 16A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | PG-TSLP-3 |
| Bidirectional Channels | 2 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 12.1V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
