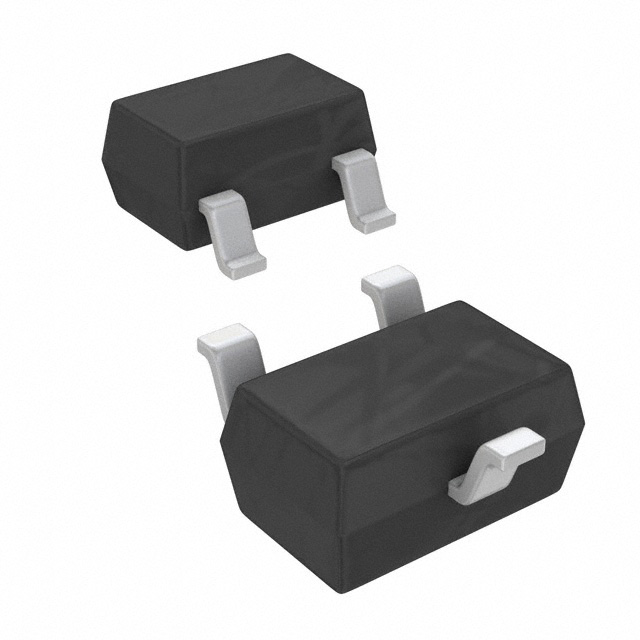

ESD1P0RFWH6327XTSA1
TVS DIODE 70VWM 15VC SOT323-3Manufacturer: Infineon Technologies
Categories: TVS Diodes
Quality Control: Learn More
Infineon Technologies ESD1P0RFWH6327XTSA1 is a unidirectional TVS diode designed for transient voltage suppression. This device offers a 70V reverse standoff voltage and a 15V maximum clamping voltage at 10A (8/20µs) peak pulse current. Its low capacitance of 1pF at 1MHz makes it suitable for high-speed signal line protection. The component is housed in a compact PG-SOT323 (SC-70) package for surface mounting, available on tape and reel. Typical applications include protection for Ethernet, HDMI interfaces, and RF antennas where robust overvoltage protection is critical. The operating temperature range is -55°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | Ethernet, HDMI, RF Antenna |
| Capacitance @ Frequency | 1pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 70V (Max) |
| Supplier Device Package | PG-SOT323 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 15V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
