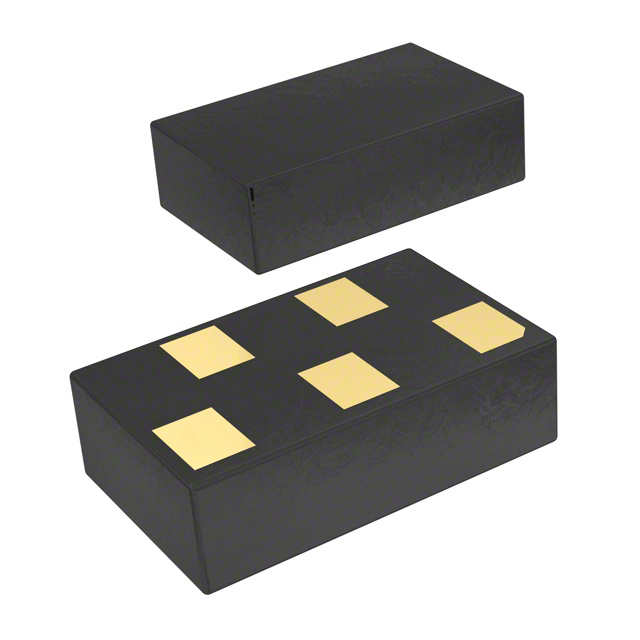

ESD102U405LE6327XTSA1
TVS DIODE 3.3VWM TSLP-5-2Manufacturer: Infineon Technologies
Categories: TVS Diodes
Quality Control: Learn More
Infineon Technologies ESD102U405LE6327XTSA1 is a transient voltage suppressor (TVS) diode designed for robust circuit protection. This device features a low capacitance of 0.35pF at 1MHz, making it suitable for high-speed signal lines. It offers a 3.3V reverse standoff voltage and a 6.2V typical breakdown voltage. The ESD102U405LE6327XTSA1 is engineered with four unidirectional protection channels and a peak pulse power rating of 28W. Its TSLP-5-2 package, a 5-XFLGA, facilitates surface mounting and is supplied on a tape and reel. This component is commonly utilized in applications such as Ethernet and HDMI interfaces, providing protection against electrostatic discharge and other transient overvoltages within an operating temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 5-XFLGA |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Applications | Ethernet, HDMI |
| Capacitance @ Frequency | 0.35pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | TSLP-5-2 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6.2V (Typ) |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | 28W |
| Power Line Protection | No |
