24VS2BE6327XT
TVS DIODE 24VWM 41VC SOT23-3Manufacturer: Infineon Technologies
Categories: TVS Diodes
Quality Control: Learn More
Infineon Technologies 24VS2BE6327XT is a surface mount TVS diode, housed in a PG-SOT23 package. This bidirectional device offers a reverse standoff voltage of 24V, with a minimum breakdown voltage of 26V. It features a clamping voltage of 41V at a peak pulse current of 5A (8/20µs), providing 230W of peak pulse power. Operating across a temperature range of -55°C to 150°C, this component is suitable for general-purpose applications.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Supplier Device Package | PG-SOT23 |
| Bidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 26V |
| Voltage - Clamping (Max) @ Ipp | 41V |
| Power - Peak Pulse | 230W |
| Power Line Protection | No |
Request a Quote
Clients Also Buy

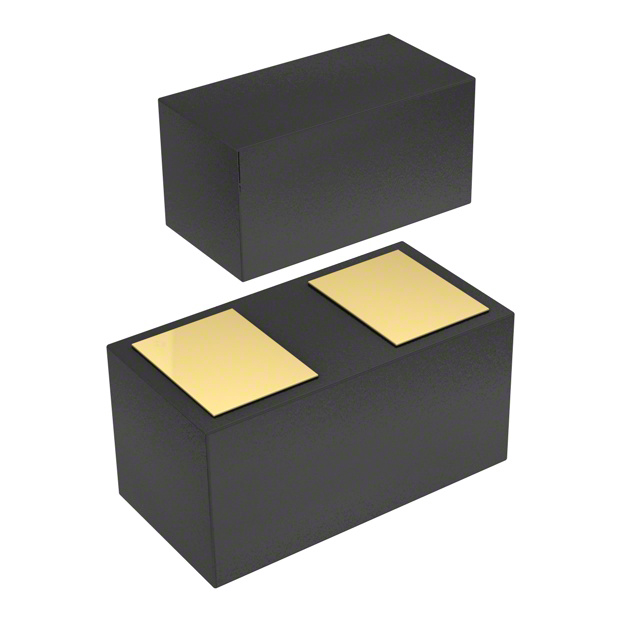

ESD105B102ELSE6327XTSA1
TVS DIODE 5.5VWM 14VC TSSLP-2-4

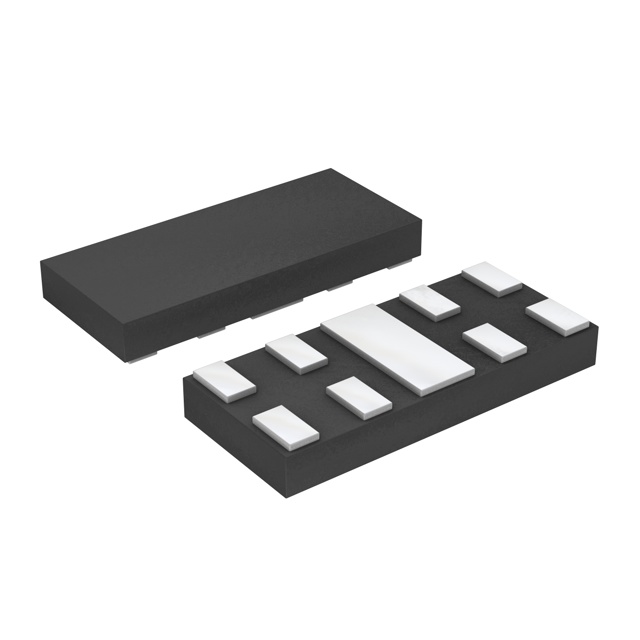

ESD5V3U4UHDMIE6327XTSA1
