PVI1050NPBF
COAX CBL W.FL TO W.FLManufacturer: Infineon Technologies
Categories: Transistor, Photovoltaic Output Optoisolators
Quality Control: Learn More
Optoisolator Photovoltaic Output 2500Vrms 2 Channel 8-DIP
Additional Information
Series: PVIRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 8-DIP (0.300"", 7.62mm) |
| Output Type | Photovoltaic |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | - |
| Input Type | DC |
| Current - Output / Channel | 5µA |
| Voltage - Isolation | 2500Vrms |
| Current Transfer Ratio (Min) | - |
| Vce Saturation (Max) | - |
| Current Transfer Ratio (Max) | - |
| Supplier Device Package | 8-DIP |
| Voltage - Output (Max) | 5V |
| Turn On / Turn Off Time (Typ) | 300µs, 220µs (Max) |
| Rise / Fall Time (Typ) | - |
| Number of Channels | 2 |
Request a Quote
Clients Also Buy
PVI1050NPBFHKLA1
MICROELECTRONIC RELAYS

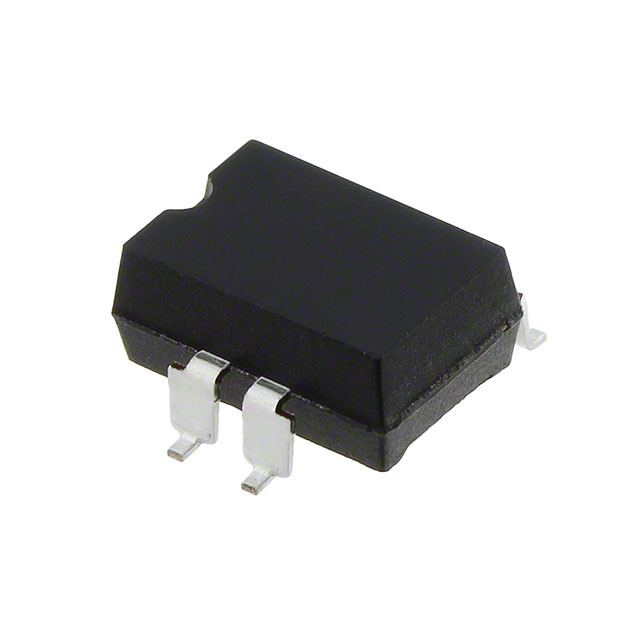

PVI1050NS
