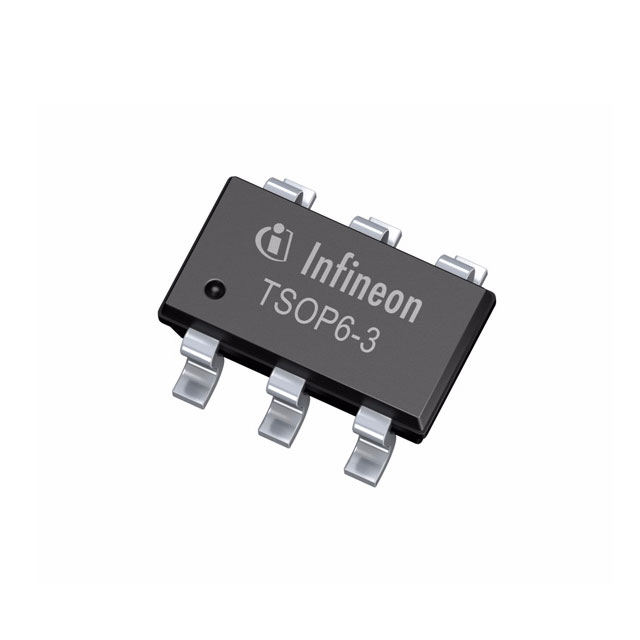

TLE49663KHTSA1
MAG SWITCH SPEC PURP TSOP-6-6Manufacturer: Infineon Technologies
Categories: Switches (Solid State)
Quality Control: Learn More
Infineon Technologies TLE49663KHTSA1 is a Hall Effect digital switch featuring an open-collector output. This automotive-grade device, qualified to AEC-Q100 standards, is housed in a PG-TSOP6-6 package for surface mounting. It operates within a supply voltage range of 2.7V to 24V and offers a maximum output current of 50mA with a typical supply current of 7mA. The TLE49663KHTSA1 is designed with temperature compensation for stable performance across varying thermal conditions. Its special purpose functionality makes it suitable for applications in automotive systems, including body electronics and powertrain control. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 Thin, TSOT-23-6 |
| Output Type | Open Collector |
| Polarization | - |
| Mounting Type | Surface Mount |
| Function | Special Purpose |
| Operating Temperature | - |
| Voltage - Supply | 2.7V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | - |
| Current - Output (Max) | 50mA |
| Current - Supply (Max) | 7mA |
| Supplier Device Package | PG-TSOP6-6 |
| Test Condition | - |
| Grade | Automotive |
| Qualification | AEC-Q100 |
