TLE49615KXTSA1

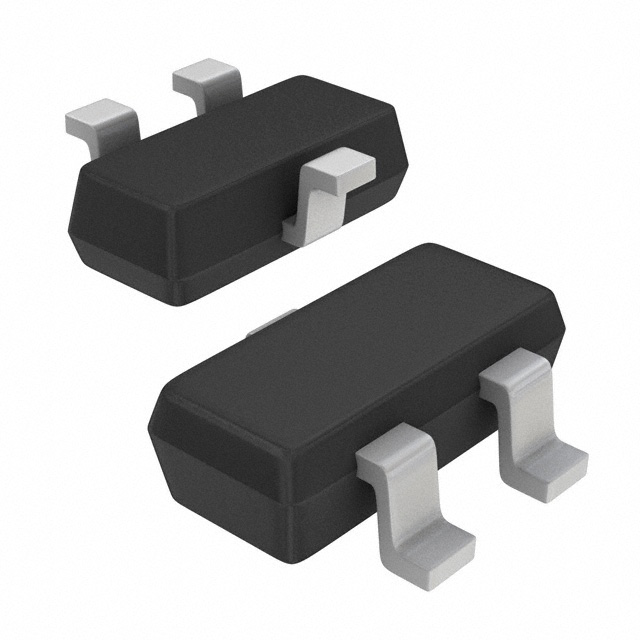

MAGNETIC SWITCH LATCH SC59Manufacturer: Infineon Technologies
Categories: Switches (Solid State)
Quality Control: Learn More
Infineon Technologies TLE49615KXTSA1 is a digital Hall effect switch featuring a latching function with south-pole detection. This AEC-Q100 qualified component is designed for automotive applications. It operates with a supply voltage range of 3V to 32V and draws a maximum supply current of 2.5mA, while providing a maximum output current of 25mA. The output type is open drain, requiring a pull-up resistor. Key features include temperature compensation, ensuring stable performance across its operating temperature range of -40°C to 170°C. The sensing range is specified at 19.8mT for trip and -19.8mT for release. Packaged in a PG-SC59-3 (TO-236-3, SC-59, SOT-23-3) surface-mount configuration, it is supplied on tape and reel. This device finds application in automotive systems requiring precise magnetic field detection and switching.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Output Type | Open Drain |
| Polarization | South Pole |
| Mounting Type | Surface Mount |
| Function | Latch |
| Operating Temperature | -40°C ~ 170°C (TJ) |
| Voltage - Supply | 3V ~ 32V |
| Technology | Hall Effect |
| Sensing Range | 19.8mT Trip, -19.8mT Release |
| Current - Output (Max) | 25mA |
| Current - Supply (Max) | 2.5mA |
| Supplier Device Package | PG-SC59-3 |
| Test Condition | 25°C |
| Grade | Automotive |
| Qualification | AEC-Q100 |
