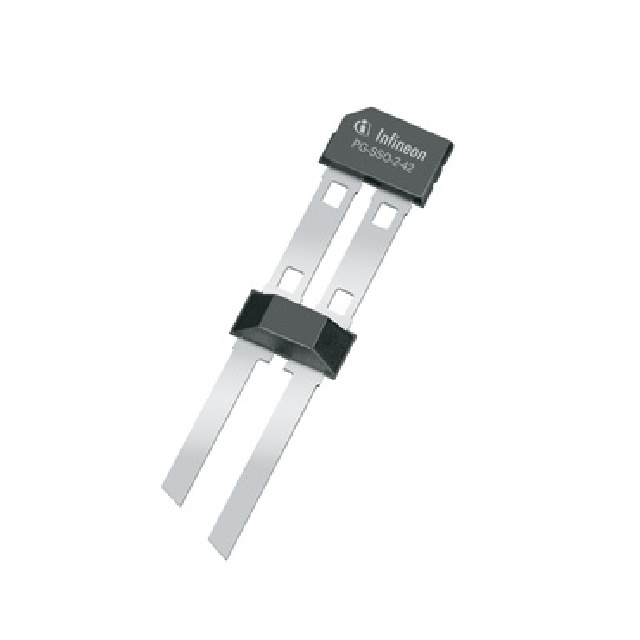

TLE4953CHAMA3
MAGNETIC SWITCH SPECIAL PURPOSEManufacturer: Infineon Technologies
Categories: Switches (Solid State)
Quality Control: Learn More
Infineon Technologies TLE4953CHAMA3 is a digital Hall effect switch designed for specialized current source applications. This component utilizes Hall effect technology for reliable magnetic field detection. It operates within a broad supply voltage range of 4.5V to 20V, with a maximum supply current of 16.8mA. The TLE4953CHAMA3 features a current source output and is designed to detect both north and south magnetic poles. Its through-hole mounting type and 2-SIP, SSO-2-2 package facilitate integration into robust system designs. This device is suitable for operation across an extended temperature range of -40°C to 150°C (TJ). This component finds application in automotive and industrial sectors requiring precise magnetic sensing.
Additional Information
Series: TLERoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: ActivePackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Cut Tape (CT) |
| Package / Case | 2-SIP, SSO-2-2 |
| Output Type | Current Source |
| Polarization | North Pole, South Pole |
| Mounting Type | Through Hole |
| Function | Special Purpose |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Voltage - Supply | 4.5V ~ 20V |
| Technology | Hall Effect |
| Sensing Range | - |
| Current - Output (Max) | - |
| Current - Supply (Max) | 16.8mA |
| Test Condition | - |
