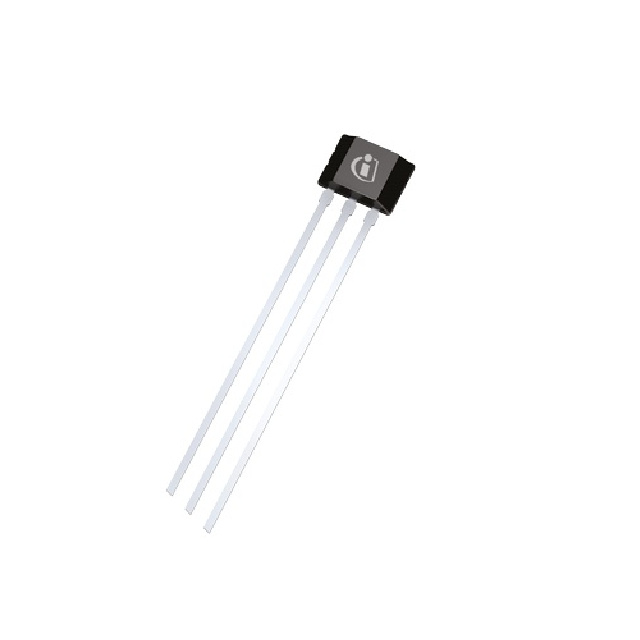

TLE49452LHALA1
MAGNETIC SWITCH BIPOLAR 3SSOManufacturer: Infineon Technologies
Categories: Switches (Solid State)
Quality Control: Learn More
Infineon Technologies' TLE49452LHALA1 is a bipolar Hall effect switch designed for demanding applications. This solid-state switch, featuring an open-collector output, offers precise magnetic sensing with a ±3mT trip and ±6mT release sensing range. It operates across a wide temperature range of -40°C to 150°C and supports supply voltages from 3.8V to 24V. Key features include temperature compensation for stable performance and the ability to detect both north and south magnetic poles. With a maximum output current of 100mA and a supply current of 8mA, the TLE49452LHALA1 is suitable for applications in automotive, industrial automation, and consumer electronics where reliable magnetic switching is critical. The component is supplied in Cut Tape (CT) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 18 week(s)Product Status: Last Time BuyPackaging: Cut Tape (CT)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Compensated |
| Packaging | Cut Tape (CT) |
| Output Type | Open Collector |
| Polarization | North Pole, South Pole |
| Function | Bipolar Switch |
| Operating Temperature | -40°C ~ 150°C |
| Voltage - Supply | 3.8V ~ 24V |
| Technology | Hall Effect |
| Sensing Range | ±3mT Trip, ±6mT Release |
| Current - Output (Max) | 100mA |
| Current - Supply (Max) | 8mA |
| Test Condition | 25°C |
