PVY117PBF
SSR RELAY SPST-NO 470MA 0-40VManufacturer: Infineon Technologies
Categories: Solid State Relays (SSR)
Quality Control: Learn More

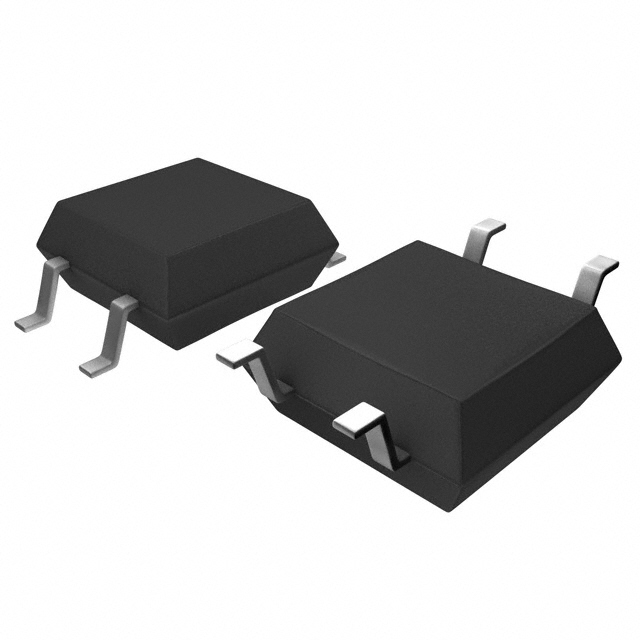

The Infineon Technologies PVY117PBF is a Solid State Relay from the PVY, HEXFET® series. This component features a single-pole, single-throw normally open (SPST-NO) configuration, equivalent to a 1 Form A circuit. Designed for surface mounting, it utilizes a 4-SOP package with gull wing termination. The relay supports both AC and DC output types and operates within a load voltage range of 0V to 40V. It is rated for a continuous load current of up to 470mA, with a maximum on-state resistance of 950 mOhms. The input voltage requirement is 1.2VDC. This component is suitable for applications in industrial automation and telecommunications. It is supplied in tube packaging.
Additional Information
Series: PVY, HEXFET®RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 4-SOP (0.173"", 4.40mm) |
| Output Type | AC, DC |
| Mounting Type | Surface Mount |
| Voltage - Input | 1.2VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | Gull Wing |
| Load Current | 470 mA |
| Approval Agency | - |
| Supplier Device Package | 4-SOP |
| Grade | - |
| Voltage - Load | 0 V ~ 40 V |
| On-State Resistance (Max) | 950 mOhms |
| Qualification | - |
