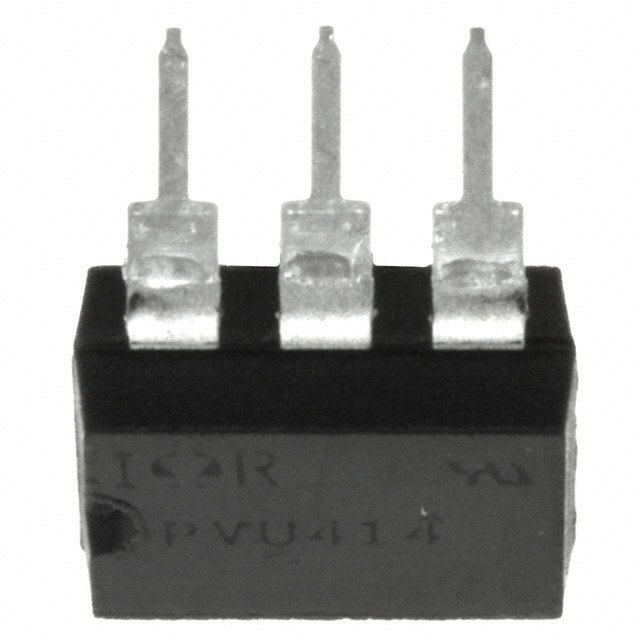

PVU414PBF
SSR RELAY SPST-NO 140MA 0-400VManufacturer: Infineon Technologies
Categories: Solid State Relays (SSR)
Quality Control: Learn More
Infineon Technologies PVU414PBF is a solid-state relay featuring a single-pole, single-throw normally open (SPST-NO, 1 Form A) configuration. This HEXFET® series component offers a load current capability of 140 mA and operates across a wide voltage range of 0 V to 400 V. The device utilizes DC input voltage, with a typical activation voltage of 1.2 VDC. Mounted via through-hole technology, it is housed in a standard 6-DIP (0.300", 7.62mm) package. The maximum on-state resistance is specified at 27 Ohms. Operating within a temperature range of -40°C to 85°C, this component is UL approved and finds application in industrial automation, medical equipment, and test and measurement systems.
Additional Information
Series: PVU, HEXFET®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 6-DIP (0.300"", 7.62mm) |
| Output Type | AC, DC |
| Mounting Type | Through Hole |
| Voltage - Input | 1.2VDC |
| Circuit | SPST-NO (1 Form A) |
| Operating Temperature | -40°C ~ 85°C |
| Termination Style | PC Pin |
| Load Current | 140 mA |
| Approval Agency | UL |
| Supplier Device Package | 6-DIP |
| Grade | - |
| Voltage - Load | 0 V ~ 400 V |
| On-State Resistance (Max) | 27 Ohms |
| Qualification | - |
